• Donaldson Hydraulic Filter, Cartridge - Donaldson P566192
1 1

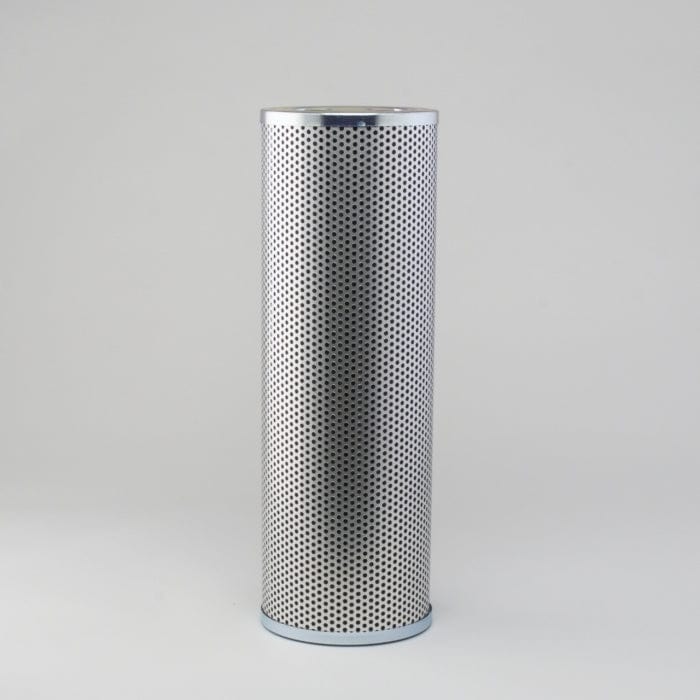

Hydraulic Filter, Cartridge - Donaldson P566192

Hydraulic Filter, Cartridge - Donaldson P566192

£294.69
£294.69
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566192

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Seal Material: Nitrile/Cellulose
  • Mesh Rating: 150 micron
  • Outer Diameter: 189 mm (7.44 inch)
  • Inner Diameter: 123.44 mm (4.86 inch)
  • Length: 558.8 mm (22 inch)
  • Efficiency Beta 2: 150 micron
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Cartridge
  • Series: HRK10
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.210 m (8.40 inch)
  • Packaged Width: 0.210 m (8.40 inch)
  • Packaged Height: 0.568 m (22.70 inch)
  • Packaged Weight: 4.304 kg (9.48 lb)
  • Packaged Volume: 0.026 m3 (0.93 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330179819
