• Donaldson Hydraulic Filter, Cartridge - Donaldson P560527
1 1

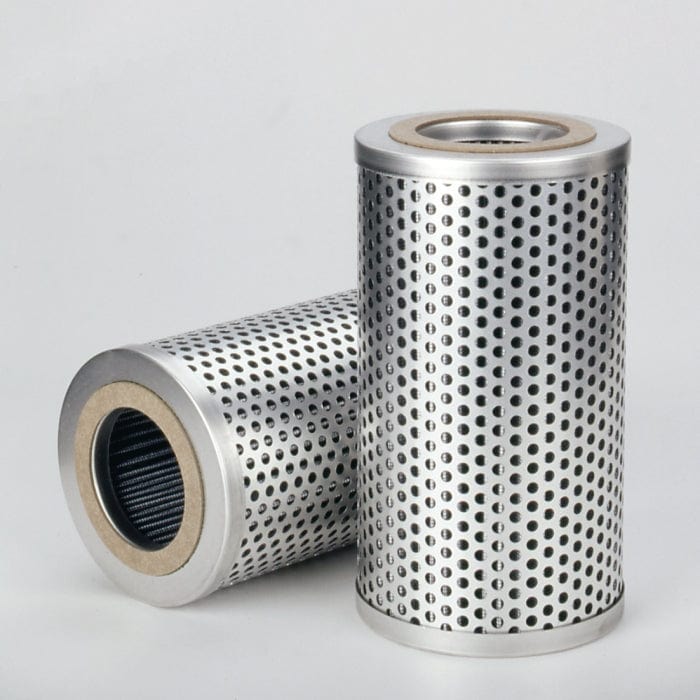

Hydraulic Filter, Cartridge - Donaldson P560527

Hydraulic Filter, Cartridge - Donaldson P560527

£46.19
£46.19
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P560527

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 111.51 mm (4.39 inch)
  • Inner Diameter: 62.23 mm (2.45 inch)
  • Length: 203.2 mm (8.00 inch)
  • Efficiency Beta 2: 2 micron
  • Efficiency Beta 20: 33 micron
  • Collapse Burst: 8.6 bar (125 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.125 m (5.00 inch)
  • Packaged Width: 0.120 m (4.80 inch)
  • Packaged Height: 0.215 m (8.60 inch)
  • Packaged Weight: 0.651 kg (1.44 lb)
  • Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-07
  • HTS Code: 8421298090
  • UPC Code: 742330123416

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO PF997
AGCO 1051399M92
AMERICAN PARTS 92531
BADGER 0914622
BIG A 92531
CATERPILLAR 3I0449
COLT 125656050
DEUTZ 1051399M92
DOOSAN 35328509
DRESSER 136601
EIMCO 69008877
EIMCO D2NP160108
GALION D136607
GALION D136601
GALION 136601
GARDNER DENVER 2109093
GETMAN 534112
GETMAN 594112
HAWKER SIDDELEY 10033178
INGERSOLL RAND 35290295
INGERSOLL RAND 35378464
INGERSOLL RAND 35328509
INSLEY 914622
KOMDRESCO SA 136601
KRALINATOR L409
MASSEY FERGUSON 1051399M1
MASSEY FERGUSON 1051399T91
MASSEY FERGUSON 1051399M91
MASSEY FERGUSON 1051399M92
VMC HF560527
WALGAHN-MOTORENTECHN 00810881
WALGAHN-MOTORENTECHN 810881
