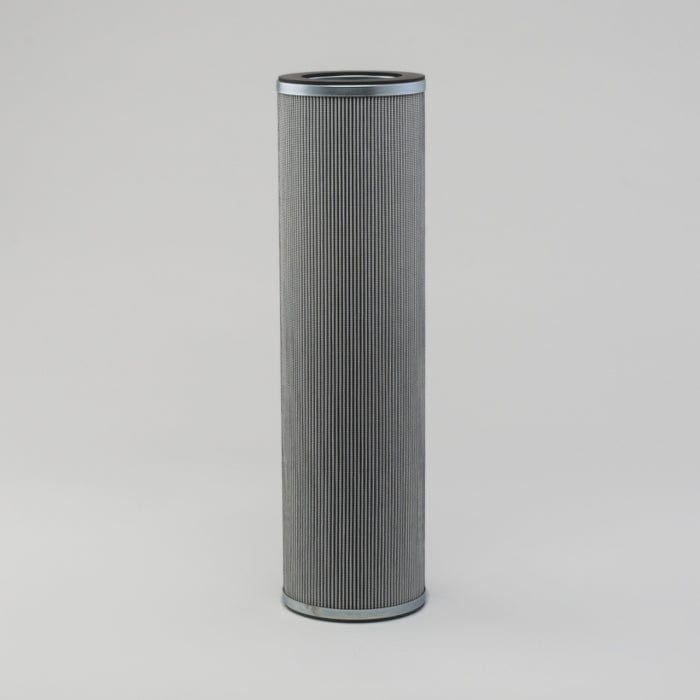

• Donaldson Hydraulic Filter, Cartridge - Donaldson P560400
1 1

Hydraulic Filter, Cartridge - Donaldson P560400

Hydraulic Filter, Cartridge - Donaldson P560400

£87.27
£87.27
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P560400

Hydraulic Filter, Cartridge
Seal Material Nitrile/Cellulose
Outer Diameter 5.08 inch (129 mm)
Inner Diameter 3.35 inch (85 mm)
Length 18.15 inch (461 mm)
Efficiency Beta 1000 12 micron
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Nitrile/Cellulose
  • Outer Diameter: 129 mm (5.08 inch)
  • Inner Diameter: 85 mm (3.35 inch)
  • Length: 461 mm (18.15 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.140 m (5.60 inch)
  • Packaged Height: 0.493 m (19.70 inch)
  • Packaged Weight: 1.762 kg (3.88 lb)
  • Packaged Volume: 0.010 m3 (0.37 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330117156

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO 7234319
ARGO 7226127
BEHRINGER BEB1812A
DRILTECH 4724055
DRILTECH 004724055
GRAINGER 1XPV5
GRAINGER 52YT51
GROVE 9437100849
GROVE 9437100569
INSLEY H8357
INSLEY H8409
LINK BELT D7U0149
MP FILTRI MP11442
PETTIBONE FP1508757
TAMROCK 00472455
TAMROCK 472455
VMC HF560400
