• Donaldson Hydraulic Filter, Cartridge - Donaldson P559740
1 1

Hydraulic Filter, Cartridge - Donaldson P559740

Hydraulic Filter, Cartridge - Donaldson P559740

£12.45
£12.45
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

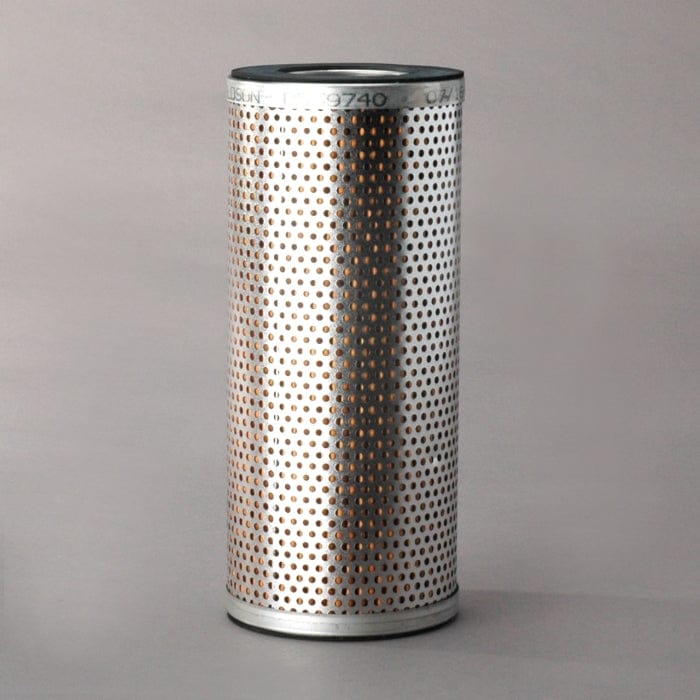

Donaldson P559740

Hydraulic Filter, Cartridge
Outer Diameter 4.00 inch (101.6 mm)
Inner Diameter 2.30 inch (58.4 mm)
Length 9.13 inch (232 mm)
Overall Length 9.25 inch (235 mm)
Efficiency Beta 2 20 micron
Efficiency Beta 20 35 micron
Efficiency Beta 1000 39 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Media Type Cellulose
Primary Application CATERPILLAR 9M9740
View full details

Specifications

Attributes

  • Outer Diameter: 101.6 mm (4.00 inch)
  • Inner Diameter: 58.4 mm (2.30 inch)
  • Length: 232 mm (9.13 inch)
  • Overall Length: 235 mm (9.25 inch)
  • Efficiency Beta 2: 20 micron
  • Efficiency Beta 20: 35 micron
  • Efficiency Beta 1000: 39 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Media Type: Cellulose
  • Primary Application: CATERPILLAR 9M9740

Packaged Dimensions

  • Packaged Length: 0.100 m (4.00 inch)
  • Packaged Width: 0.093 m (3.70 inch)
  • Packaged Height: 0.230 m (9.20 inch)
  • Packaged Weight: 0.556 kg (1.23 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330047187

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO PF295
AC DELCO PF87
AMERICAN MOTORS CORPORATION H1932
AMERICAN MOTORS CORPORATION H193
AMERICAN MOTORS CORPORATION SFH9740
AMERICAN PARTS 92163
AMERICAN PARTS 701
AS AS17OH
BIG A 701
BIG A 92163
CARBOCOL HF6097
CATERPILLAR 6P4603 Filter element only
CATERPILLAR 2M9156
CATERPILLAR 2S1677
CATERPILLAR 1RO719
CATERPILLAR 7M5264
CATERPILLAR 281677
CATERPILLAR 1M9156
CATERPILLAR 1M9150
CATERPILLAR 1R0719
CATERPILLAR 7S8699
CATERPILLAR 9M9740
CATERPILLAR 9M9156
CATERPILLAR 3047195
CATERPILLAR 4A0339
CATERPILLAR 3I1411
CATERPILLAR 4A339
CATERPILLAR 4J4195
CATERPILLAR 1U2093
CATERPILLAR 2M3943
CATERPILLAR 9W6427
CATERPILLAR 81400749
CATERPILLAR 2P3576
CATERPILLAR 1208757
CATERPILLAR 3I0589
CATERPILLAR 2M3243
CHAMP P164
CHARDONNET 7255974000
CONVEYANCER 330004047
COOP PM9M9740
COOP P9M9740
COOPERS AZH006
COOPERS G657
CROSLAND 301
CYCLONE PM9M9740
DELUXE FC407
DELUXE WD407
DELUXE 407
DIAMOND DH1021
DOGUS Y1016
DRESSER 3066975R91
EIMCO 69002668
EIMCO D2NP559740
EXMAN H1932
EXMAN H193
EXMAN SFH9740
FAMEL FA87
FIAAM FA4341
FIL ML223
FILITRONIC 161Y
FILT FF253
FILT FF356
FORD 9576P559740
FREIGHTLINER DNP559740
FSA FO1771
FURUKAWA 3066975R91
GOULD P9M9740
GOULD P2M3943
GUARDIAN G051163
GUD G657
HAVAM HD9740
HESCO 9M9740
INDUCONTROL CPL155
INGERSOLL RAND 9M9740
KALMAR 9231100221
KOMATSU 1541912130
KOMATSU 1656932630
KOMATSU 1685485
KRALINATOR L806
LOCKHEED FH249
LOCKHEED 574249
LOCKHEED APH4381A
LOCKHEED APH440A
LOCKHEED LK438
LOCKHEED AP438
LOESING 25074
LOESING 025074
MASTE D163
MITSUBISHI HE27020
NELSON WINSLOW W2M3943
NELSON WINSLOW W2M3943
ORENSTEIN & KOPPEL 103818
ORENSTEIN & KOPPEL 105509
OSHKOSH P559740
P.B.R. AC3004
PERRY PL407
POSTAS YF1161
REFILCO 1M9156M
ROL-PAK CT4X9
SAVARA 92096017
SOPARIS DH387
STAY READY SRPCAT11
TEREX 105509
TEREX 103818
TEREX X6350505
TIM 9W6427
TIM 2S1677
TIM 2M9156
TIM 2P3576
TIM 2M3243
TIM 2M3943
TIM 7M5264
TIM 7S8699
TIM 4J4195
TIM 1M9150
TIM 4A0339
TIM 1M9156
TIMBERJACK 101948
UNITED CENTRAL INDUSTRIAL SUPP 689060
UNITED ENGINE LIFE CP9M9740P
VMC LF559740
VMC HF559740
WALGAHN-MOTORENTECHN 811490
WALGAHN-MOTORENTECHN 00811490
WGB S189CP
