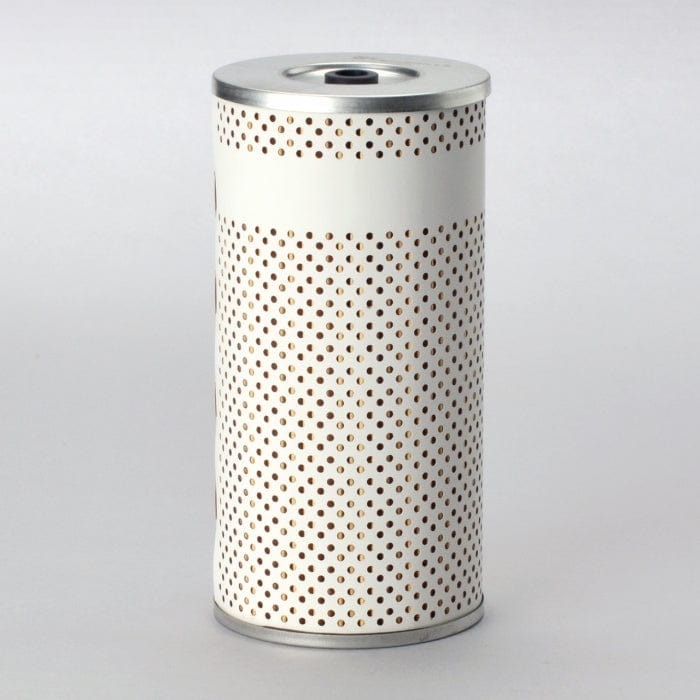

Hydraulic Filter, Cartridge - Donaldson P556001

Hydraulic Filter, Cartridge - Donaldson P556001

£18.23
£18.23
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P556001

Hydraulic Filter, Cartridge
Outer Diameter 4.53 inch (115 mm)
Inner Diameter 0.54 inch (13.7 mm)
Length 8.97 inch (227.77 mm)
Efficiency Beta 2 16 micron
Efficiency Beta 20 35 micron
Style Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 115 mm (4.53 inch)
  • Inner Diameter: 13.7 mm (0.54 inch)
  • Length: 227.77 mm (8.97 inch)
  • Efficiency Beta 2: 16 micron
  • Efficiency Beta 20: 35 micron
  • Style: Cartridge

Packaged Dimensions

  • Packaged Length: 0.133 m (5.30 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.235 m (9.40 inch)
  • Packaged Weight: 0.495 kg (1.09 lb)
  • Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330045107

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
A P PARTS 2358
A P PARTS APH3187A
AC DELCO PF982
AC DELCO PF1084
ALLMAND BROS 301031
AMERICAN MOTORS CORPORATION 13420028
AMERICAN PARTS 92405
AMERICAN PARTS 92403
AMERICAN PARTS 891
AVELING-BARFORD ABP3001588
AVELING-BARFORD 9576P556001
BIG A 891
BIG A 92405
BIG A 92403
CASE/CASE IH VK1260
CASE/CASE IH 631144C1
CASE/CASE IH 631144C2
CASE/CASE IH 631144C3
CATERPILLAR 3I1334
CATERPILLAR 9G6420
CHAMP LP6061
COMPAIR R1021135210
COOPERS HEM6081
DELUXE 376
DELUXE WD379
DELUXE WD376
DELUXE 379
DRESSER 631144C3
DRESSER 631144C2
DRESSER 631144C1
EATON 493144
EATON 6900732
EIMCO 69016044
FIL ML1008
FREIGHTLINER DNP556001
FURUKAWA 631144C3
FURUKAWA 631144C1
HAVAM HD6001
INTERNATIONAL 631144C1
INTERNATIONAL 631144C3
INTERNATIONAL 631144C2
KOMATSU VK1260
KOMATSU 631144C2
KOMATSU 631144C3
KRALINATOR L944
KRALINATOR L943
LOCKHEED APH3187A
LOESING 25078
LOESING 025078
ORENSTEIN & KOPPEL 4194305
PAYHAULER 631144C2
REXNORD 493137
REXNORD 493144
SAVARA 92153117
SAVARA 92153017
TIMBERJACK 450846
TIMBERJACK 408075
TROJAN 493144
TROJAN 6900732
TWIN DISC 1120R0613
TWIN DISC XM2724
TWIN DISC X221116
TWIN DISC M2725A
TWIN DISC M2725
UNITED CENTRAL INDUSTRIAL SUPP 689100F
UNITED CENTRAL INDUSTRIAL SUPP 689100
VMC HF556001
WABCO VK1260
WABCO VK1626
WALGAHN-MOTORENTECHN 811442
WALGAHN-MOTORENTECHN 00811442
WGB S263CP
YALE 493144
YALE 6900732

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 3406C - ENGINE - - 3406C -
CATERPILLAR 3408 - ENGINE - CATERPILLAR 3408 -
CATERPILLAR 3408B - ENGINE - - 3408B -
INTERNATIONAL 350 - DUMP TRUCK - - 350 -
KOMATSU 100C - LOADER TRACKED - - 100C -
KOMATSU 175C - LOADER TRACKED - CASE/CASE IH DT466 -
KOMATSU 3964B - EXCAVATOR - CASE/CASE IH D358 -
KOMATSU 3965B - EXCAVATOR - CASE/CASE IH D358 -
KOMATSU 3984 - EXCAVATOR - CASE/CASE IH D358 -
KOMATSU 3984B - EXCAVATOR - CASE/CASE IH D358 -
KOMATSU 515B - LOADER WHEELED - CASE/CASE IH D358 -
KOMATSU L175E - LOADER - - L175E -
KOMATSU TD15B - DOZER TRACKED - CASE/CASE IH DT466 -
KOMATSU TD15B - DOZER TRACKED - CASE/CASE IH DT407 -
KOMATSU TD15C - TRACTOR TRACKED - - TD15C -
KOMATSU TD20 - DOZER TRACKED C SERIES CASE/CASE IH DVT573B -
KOMATSU TD20C - LOADER TRACKED - - TD20C -
KOMATSU TD20E - DOZER TRACKED - CASE/CASE IH DVT800 -
KOMATSU TD25C - DOZER TRACKED - CASE/CASE IH DT817C -
KOMATSU TD25C - DOZER TRACKED - CASE/CASE IH DT817B -
KOMATSU TD25E - DOZER TRACKED - CASE/CASE IH DT817C -
RAYGO RAM 65 - COMPACTOR - DETROIT DIESEL 8V-71N -
