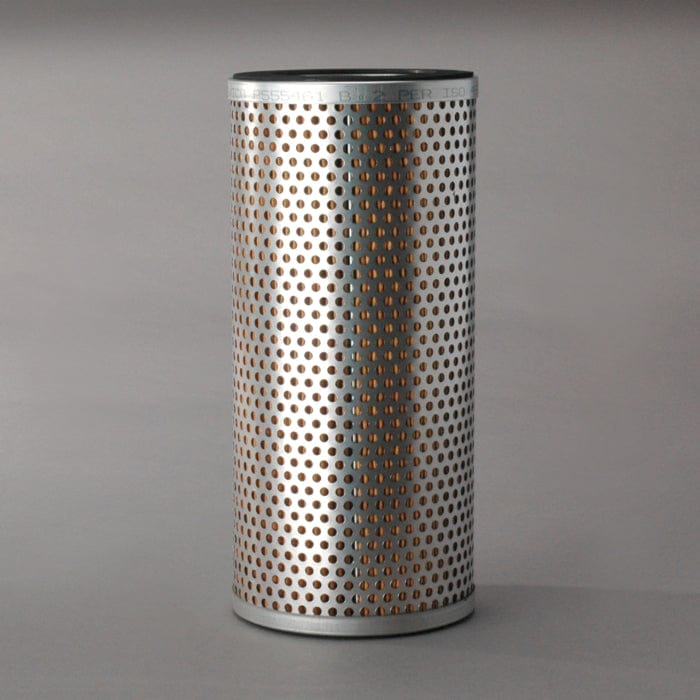

Hydraulic Filter, Cartridge - Donaldson P555461
Hydraulic Filter, Cartridge - Donaldson P555461
Regular price
£19.59
Regular price
Sale price
£19.59
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P555461
Hydraulic Filter, Cartridge| Outer Diameter | 5.07 inch (128.8 mm) |
| Inner Diameter | 3.35 inch (85.1 mm) |
| Length | 11.00 inch (279.4 mm) |
| Efficiency Beta 2 | 2 micron |
| Efficiency Beta 20 | 35 micron |
| Collapse Burst | 149 psi (10.3 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
| Primary Application | CATERPILLAR 9J5461 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 128.8 mm (5.07 inch)
- Inner Diameter: 85.1 mm (3.35 inch)
- Length: 279.4 mm (11.00 inch)
- Efficiency Beta 2: 2 micron
- Efficiency Beta 20: 35 micron
- Collapse Burst: 10.3 bar (149 psi)
- Style: Cartridge
- Media Type: Cellulose
- Primary Application: CATERPILLAR 9J5461
Packaged Dimensions
- Packaged Length: 0.123 m (4.90 inch)
- Packaged Width: 0.123 m (4.90 inch)
- Packaged Height: 0.275 m (11.00 inch)
- Packaged Weight: 1.022 kg (2.25 lb)
- Packaged Volume: 0.004 m3 (0.15 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-08
- HTS Code: 8421298090
- UPC Code: 742330044995
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF926 | |
| AMERICAN PARTS | 2014 | |
| AMERICAN PARTS | 92194 | |
| ATLAS COPCO | 9772040003 | |
| BIG A | 2014 | |
| BIG A | 92194 | |
| CATERPILLAR | 9Y4523 | |
| CATERPILLAR | 1U2096 | |
| CATERPILLAR | 3I1438 | |
| CATERPILLAR | 3I0601 | |
| CATERPILLAR | 81400752 | |
| CATERPILLAR | 9J750 | |
| CATERPILLAR | 9J5461 | |
| CATERPILLAR | 9J0750 | |
| CATERPILLAR | 1R0722 | |
| DELUXE | 275 | |
| DELUXE | WD275 | |
| EIMCO | 2NP555461 | |
| FAMEL | FA201H | |
| FIL | ML1014 | |
| FORD | 9576P555461 | |
| GREYFRIARS | GHF7115 | |
| GT PIECES ET SERVICES | 2246006 | |
| GUARDIAN | G051194 | |
| HAVAM | HD5461 | |
| IACOVOU | 9J5461 | |
| INGERSOLL RAND | 9J5461 | |
| KNECHT | HX78 | |
| KRALINATOR | L876 | |
| LOESING | 025100 | |
| LOESING | 25100 | |
| MASSEY FERGUSON | 3621297M1 | |
| P.B.R. | AC3313 | |
| PRO MATCH | 9Y4523 | |
| TIM | 1U2096 | |
| TIM | 9J0750 | |
| TOWMOTOR | 9J750 | |
| TOWMOTOR | 1R0722 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688912 | |
| VMC | HF555461 | |
| WALGAHN-MOTORENTECHN | 811817 | |
| WALGAHN-MOTORENTECHN | 00811817 |
