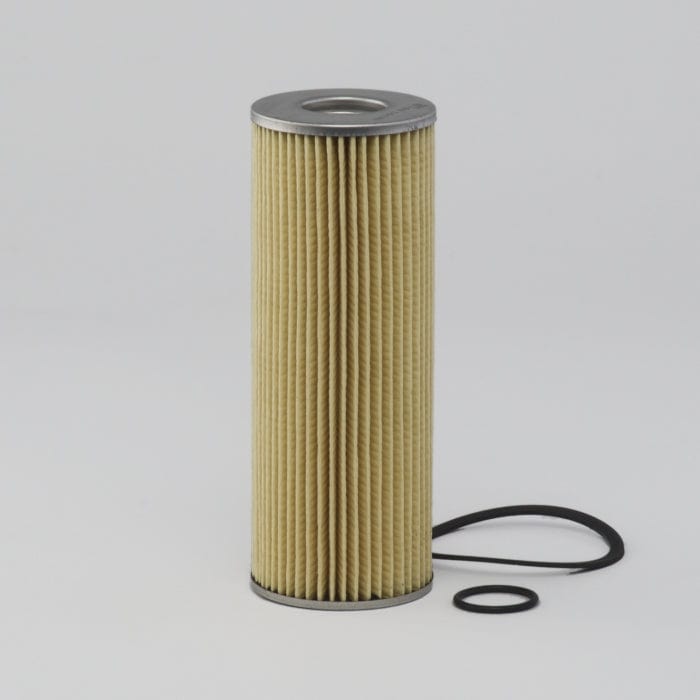

Hydraulic Filter, Cartridge - Donaldson P550696

Hydraulic Filter, Cartridge - Donaldson P550696

£16.75
£16.75
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550696

Hydraulic Filter, Cartridge
Outer Diameter 3.46 inch (87.9 mm)
Inner Diameter 1.41 inch (35.7 mm)
Length 9.25 inch (235 mm)
Efficiency Beta 2 22 micron
Efficiency Beta 20 43 micron
Bypass Valve Yes
Bypass Valve Setting LR 16 psi (1.1 bar)
Bypass Valve Setting HR 19 psi (1.3 bar)
Collapse Burst 75 psi (5.2 bar)
Style Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 87.9 mm (3.46 inch)
  • Inner Diameter: 35.7 mm (1.41 inch)
  • Length: 235 mm (9.25 inch)
  • Efficiency Beta 2: 22 micron
  • Efficiency Beta 20: 43 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.1 bar (16 psi)
  • Bypass Valve Setting HR: 1.3 bar (19 psi)
  • Collapse Burst: 5.2 bar (75 psi)
  • Style: Cartridge

Packaged Dimensions

  • Packaged Length: 0.138 m (5.50 inch)
  • Packaged Width: 0.413 m (16.50 inch)
  • Packaged Height: 0.280 m (11.20 inch)
  • Packaged Weight: 0.268 kg (0.59 lb)
  • Packaged Volume: 0.017 m3 (0.59 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330042946

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN PARTS 92127
BIG A 92127
COMPAIR K0059184
KRALINATOR L604
NEW HOLLAND 86017005
NEW HOLLAND V62075
THOMAS 16027
VERSATILE 62075
VERSATILE V36169
VERSATILE 36169
VMC HF550696

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
FORD 9030 - TRACTOR - - 9030 -
NEW HOLLAND 950 - TRACTOR - - 950 -
NEW HOLLAND 955 - TRACTOR - - 955 -
NEW HOLLAND 956 - TRACTOR - - 956 -
THOMAS T173 - SKID STEER LOADER - KUBOTA V2203E -
