• Donaldson Hydraulic Filter, Cartridge - Donaldson P550648
1 1

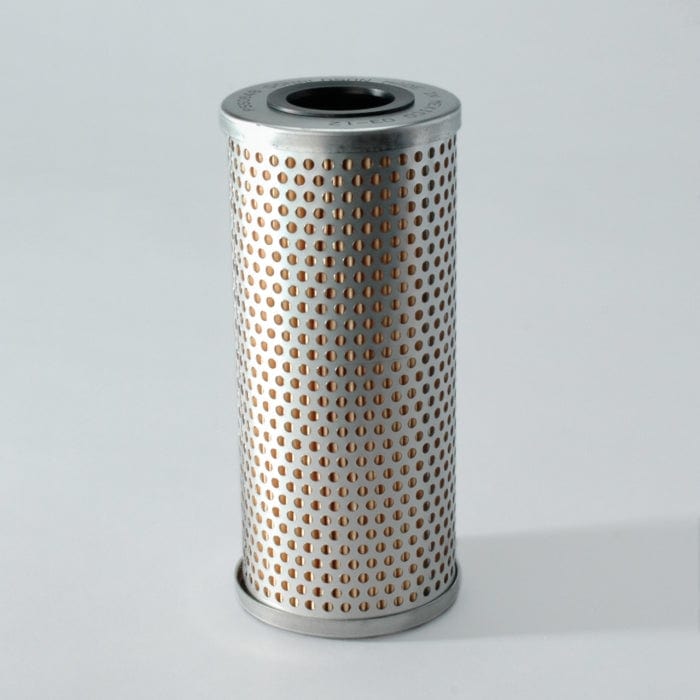

Hydraulic Filter, Cartridge - Donaldson P550648

Hydraulic Filter, Cartridge - Donaldson P550648

£18.57
£18.57
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550648

Hydraulic Filter, Cartridge
Outer Diameter 4.04 inch (102.6 mm)
Inner Diameter 1.78 inch (45.2 mm)
Length 9.02 inch (229 mm)
Gasket OD 2.50 inch (63.5 mm)
Gasket ID 1.78 inch (45.2 mm)
Efficiency Beta 20 23 micron
Efficiency Beta 1000 26 micron
Collapse Burst 100 psi (6.9 bar)
Style Cartridge
Media Type Cellulose
Primary Application KOMATSU 4241611140
View full details

Specifications

Attributes

  • Outer Diameter: 102.6 mm (4.04 inch)
  • Inner Diameter: 45.2 mm (1.78 inch)
  • Length: 229 mm (9.02 inch)
  • Gasket OD: 63.5 mm (2.50 inch)
  • Gasket ID: 45.2 mm (1.78 inch)
  • Efficiency Beta 20: 23 micron
  • Efficiency Beta 1000: 26 micron
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Cartridge
  • Media Type: Cellulose
  • Primary Application: KOMATSU 4241611140

Packaged Dimensions

  • Packaged Length: 0.118 m (4.72 inch)
  • Packaged Width: 0.118 m (4.72 inch)
  • Packaged Height: 0.236 m (9.45 inch)
  • Packaged Weight: 0.780 kg (1.72 lb)
  • Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

  • Country of Origin: Italy
  • HTS Code: 8421298090
  • UPC Code: 742330160787

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 1010002C1
DRESSER 4241611140
KOMATSU 4241611140
KOMATSU 4191514800
