• Donaldson Hydraulic Filter, Cartridge - Donaldson P550284
1 1

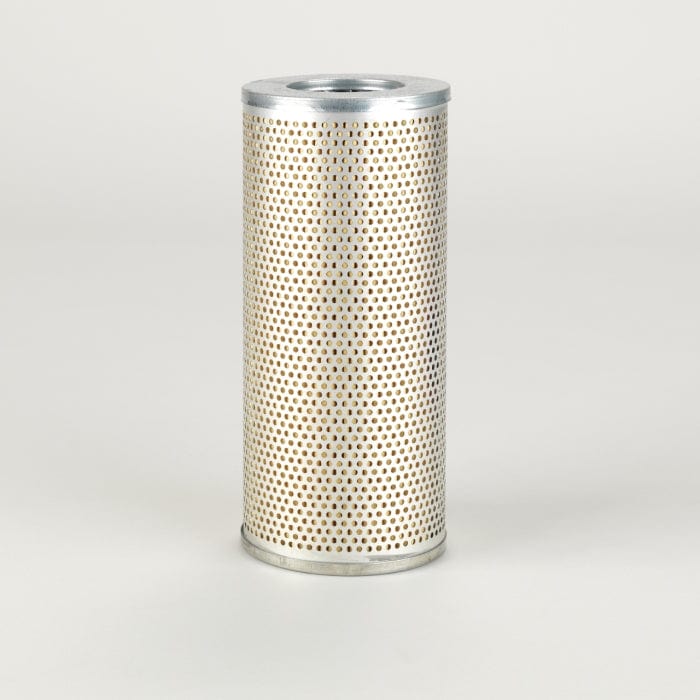

Hydraulic Filter, Cartridge - Donaldson P550284

Hydraulic Filter, Cartridge - Donaldson P550284

£50.83
£50.83
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550284

Hydraulic Filter, Cartridge
Outer Diameter 3.99 inch (101.35 mm)
Inner Diameter 2.23 inch (56.64 mm)
Length 8.96 inch (227.58 mm)
Efficiency Beta 2 9 micron
Efficiency Beta 1000 26 micron
Collapse Burst 100 psi (6.9 bar)
Style Cartridge
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 101.35 mm (3.99 inch)
  • Inner Diameter: 56.64 mm (2.23 inch)
  • Length: 227.58 mm (8.96 inch)
  • Efficiency Beta 2: 9 micron
  • Efficiency Beta 1000: 26 micron
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.113 m (4.50 inch)
  • Packaged Width: 0.113 m (4.50 inch)
  • Packaged Height: 0.243 m (9.70 inch)
  • Packaged Weight: 0.613 kg (1.35 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-07
  • HTS Code: 8421298090
  • UPC Code: 742330042045

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3I1746
VICKERS 404210
VMC HF550284
