• Donaldson Hydraulic Filter, Cartridge - Donaldson P502270
1 1

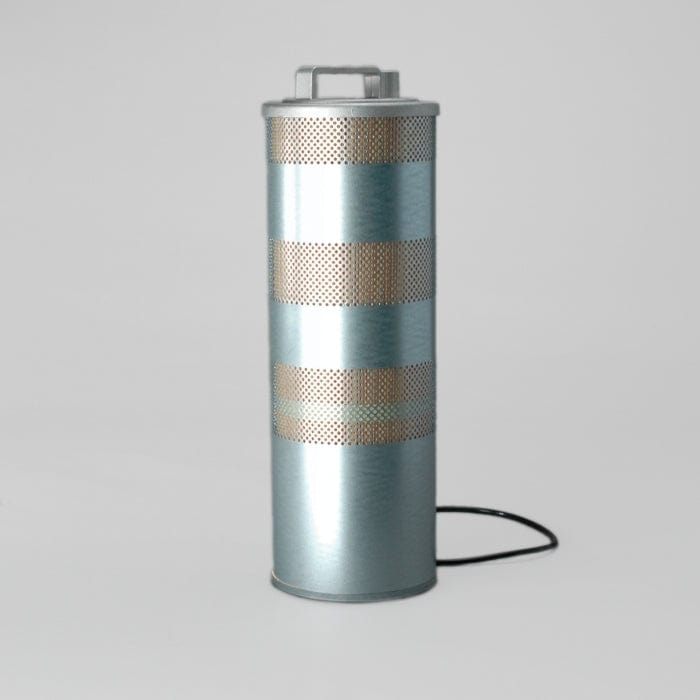

Hydraulic Filter, Cartridge - Donaldson P502270

Hydraulic Filter, Cartridge - Donaldson P502270

£57.37
£57.37
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P502270

Hydraulic Filter, Cartridge
Outer Diameter 6.15 inch (156.2 mm)
Inner Diameter 3.86 inch (98 mm)
Length 16.97 inch (431 mm)
Efficiency Beta 75 37 micron
Collapse Burst 100 psi (6.9 bar)
Style Cartridge
Media Type Cellulose
Primary Application HITACHI 4448402
View full details

Specifications

Attributes

  • Outer Diameter: 156.2 mm (6.15 inch)
  • Inner Diameter: 98 mm (3.86 inch)
  • Length: 431 mm (16.97 inch)
  • Efficiency Beta 75: 37 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.176 bar (17 psi)
  • Bypass Valve Setting HR: 1.765 bar (26 psi)
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Cartridge
  • Media Type: Cellulose
  • Primary Application: HITACHI 4448402

Packaged Dimensions

  • Packaged Length: 0.473 m (18.90 inch)
  • Packaged Width: 0.158 m (6.30 inch)
  • Packaged Height: 0.158 m (6.30 inch)
  • Packaged Weight: 2.658 kg (5.86 lb)
  • Packaged Volume: 0.012 m3 (0.43 ft3)

Other Information

  • Country of Origin: Indonesia
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330188064

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
HITACHI 4448402
HITACHI 71423013
HITACHI 4443773
JOHN DEERE 4448402
SANY EF058
SANY B222100000379
SANY B222100000233
SUNWARD 730401000068
VMC HF502270
XGMA EF058

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HITACHI ZX130K - EXCAVATOR TRACKED ZAXIS SERIES ISUZU 4BG1T -
HITACHI ZX200 - EXCAVATOR TRACKED - ISUZU 6BG1T -
HITACHI ZX200LC - EXCAVATOR TRACKED - ISUZU 6BG1 -
HITACHI ZX200LC-E - EXCAVATOR TRACKED - ISUZU 6BG1 -
HITACHI ZX210 - EXCAVATOR TRACKED - ISUZU 6BG1T -
