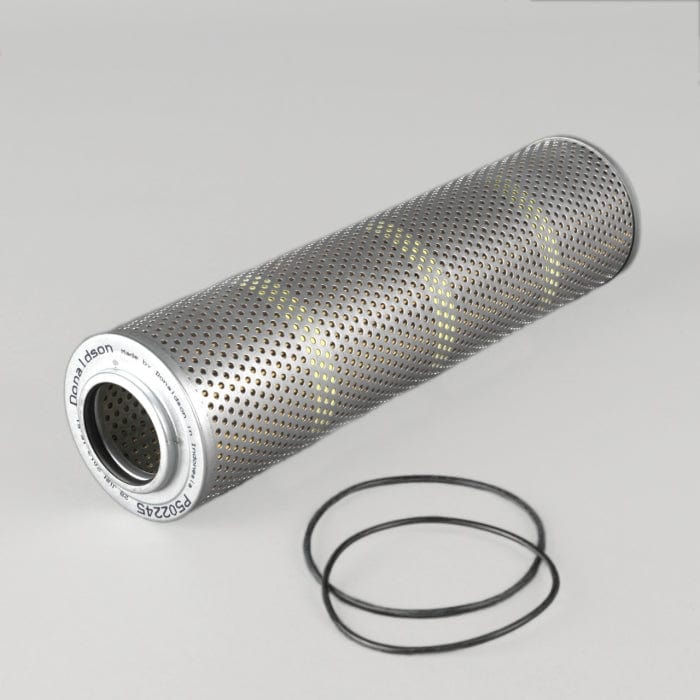

Hydraulic Filter, Cartridge - Donaldson P502245
Hydraulic Filter, Cartridge - Donaldson P502245
Regular price
£22.39
Regular price
Sale price
£22.39
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502245
Hydraulic Filter, Cartridge| Outer Diameter | 3.54 inch (90 mm) |
| Inner Diameter | 1.93 inch (49 mm) |
| Length | 13.54 inch (344 mm) |
| Efficiency Beta 2 | 14 micron |
| Efficiency Beta 20 | 30 micron |
| Efficiency Beta 75 | 37 micron |
| Efficiency Test Std | ISO 4548-12, JIS D 1611 |
| Collapse Burst | 100 psi (6.9 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 90 mm (3.54 inch)
- Inner Diameter: 49 mm (1.93 inch)
- Length: 344 mm (13.54 inch)
- Efficiency Beta 2: 14 micron
- Efficiency Beta 20: 30 micron
- Efficiency Beta 75: 37 micron
- Efficiency Test Std: ISO 4548-12
- JIS D 1611:
- Collapse Burst: 6.9 bar (100 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.374 m (14.96 inch)
- Packaged Weight: 0.970 kg (2.14 lb)
- Packaged Volume: 0.004 m3 (0.13 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069095-08
- HTS Code: 8421298090
- UPC Code: 742330183779
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| HITACHI | 76591597 | |
| HITACHI | 4225846 | |
| HITACHI | 4145408 | |
| HITACHI | L4225846 | |
| HITACHI | 4129280 | |
| HITACHI | 4255846 | |
| KOBELCO | H403 | |
| TATA | 4225846 | |
| TELCO | 4225846 | |
| TELCO | 4129280 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| HITACHI EG70R | - | CARRIER TRACKED | - | ISUZU 6BG1T | - |
| HITACHI EX27U | - | EXCAVATOR TRACKED | - | KUBOTA D1105E | - |
| HITACHI EX29UE | - | EXCAVATOR TRACKED | - | ISUZU 3LD1 | - |
| HITACHI EX30U | - | EXCAVATOR COMPACT | - | ISUZU 3LD1 | - |
| HITACHI EX32UE | - | EXCAVATOR COMPACT | - | ISUZU 3LD1 | - |
| HITACHI EX35U | - | EXCAVATOR COMPACT | - | ISUZU 3LD1 | - |
| HITACHI EX50UR | - | EXCAVATOR COMPACT | - | ISUZU 3AB1 | - |
| HITACHI EX50URG | - | EXCAVATOR COMPACT | - | ISUZU 3AB1 | - |
| HITACHI EX60 | - | EXCAVATOR COMPACT | - | NISSAN FD3304 | - |
| HITACHI EX60-1 | - | EXCAVATOR COMPACT | - | NISSAN BD3304 | - |
| HITACHI EX60-2 | - | EXCAVATOR COMPACT | - | NISSAN BD3304 | - |
| HITACHI EX60-2 | - | EXCAVATOR COMPACT | - | NISSAN BD3004-19 | - |
| HITACHI EX60-3 | - | EXCAVATOR COMPACT | - | NISSAN BD3304 | - |
| HITACHI EX60-3 | - | EXCAVATOR COMPACT | - | NISSAN BD3004-19 | - |
| HITACHI EX60-5 | - | EXCAVATOR COMPACT | - | NISSAN BD3304 | - |
| HITACHI EX60LC-5 | - | EXCAVATOR COMPACT | EX SERIES | NISSAN BD3004-19 | - |
| HITACHI EX60SR | - | EXCAVATOR COMPACT | - | NISSAN FD3304 | - |
| HITACHI EX60URG | - | EXCAVATOR COMPACT | - | ISUZU 4JB1 | - |
| HITACHI EX60WD | - | EXCAVATOR WHEELED | - | NISSAN FD3504 | - |
| HITACHI EX60WD-2 | - | EXCAVATOR WHEELED | - | NISSAN BD3004-17 | - |
| HITACHI EX70LCK-5 | - | EXCAVATOR TRACKED | - | NISSAN BD3304 | - |
| HITACHI EX75 | - | EXCAVATOR COMPACT | - | NISSAN BD3304 | - |
| HITACHI EX75UR | - | EXCAVATOR TRACKED | - | NISSAN BD3304 | - |
| HITACHI EX75UR-3 | - | EXCAVATOR TRACKED | - | NISSAN BD3004-20 | - |
| HITACHI EX75US-7 | - | EXCAVATOR TRACKED | - | ISUZU 4JG1 | - |
| HITACHI EX80-5 | - | EXCAVATOR COMPACT | - | NISSAN BD3004-19 | - |
| HITACHI LX70-2 | - | LOADER WHEELED | - | HINO W04CT | - |
| HITACHI LX70-2C | - | LOADER WHEELED | - | HINO W04CT | - |
| HITACHI LX70-5 | - | LOADER WHEELED | - | ISUZU 4BG1T | - |
| HITACHI LX80-2 | - | LOADER WHEELED | - | HINO W04DT | - |
| HITACHI LX80-2C | - | LOADER WHEELED | - | HINO W04DT | - |
| HITACHI UH033 | - | EXCAVATOR TRACKED | - | NISSAN FD3304 | - |
| HITACHI UH033 | - | EXCAVATOR TRACKED | - | ISUZU 4BB1 | - |
| HITACHI UH053 | - | EXCAVATOR TRACKED | - | ISUZU 4BD1 | - |
| HITACHI UH063 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI UH07-3 | - | EXCAVATOR TRACKED | - | ISUZU 6BB1 | - |
| HITACHI ZX27U-2 | - | EXCAVATOR COMPACT | - | YANMAR 3TNV88 | - |
| HITACHI ZX30U | - | EXCAVATOR COMPACT | - | ISUZU 3LD2 | - |
| HITACHI ZX35U | - | EXCAVATOR COMPACT | - | - ZX35U | - |
| HITACHI ZX35U-2 | - | EXCAVATOR COMPACT | - | YANMAR 3TNV88 | - |
| HITACHI ZX40U-2 | - | EXCAVATOR COMPACT | - | YANMAR 4TNV88 | - |
| HITACHI ZX75UR | - | EXCAVATOR COMPACT | - | ISUZU 4JG1 | - |
| HITACHI ZX75US | - | EXCAVATOR COMPACT | - | ISUZU 4JG1 | - |
| JOHN DEERE 27 ZTS | - | EXCAVATOR | - | ISUZU 3LD1 | - |
| JOHN DEERE 27C ZTS | - | EXCAVATOR | - | ISUZU 3LD2 | - |
| JOHN DEERE 35 ZTS | - | EXCAVATOR | - | ISUZU 3LD1 | - |
| JOHN DEERE 35C ZTS | - | EXCAVATOR | - | ISUZU 3LD2 | - |
| TATA EX60 | - | BACKHOE LOADER | - | - EX60 | - |
