• Donaldson Hydraulic Filter, Cartridge - Donaldson P502170
1 1

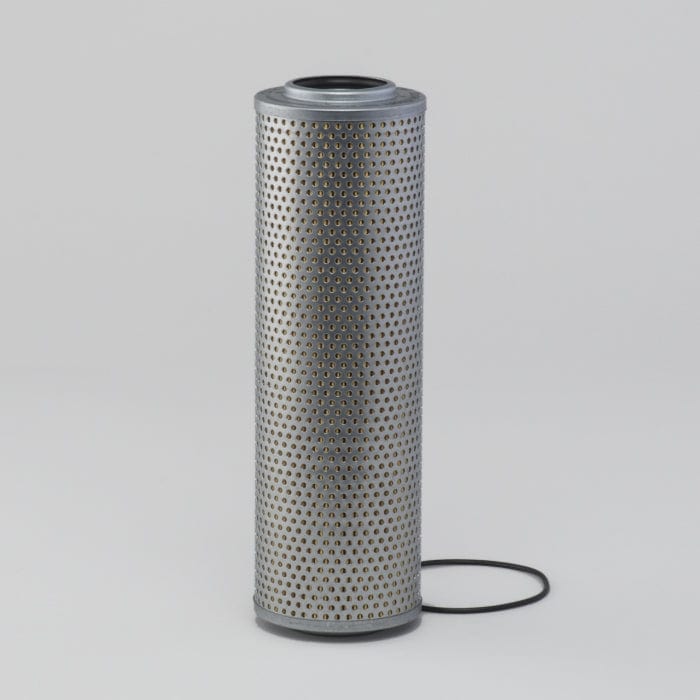

Hydraulic Filter, Cartridge - Donaldson P502170

Hydraulic Filter, Cartridge - Donaldson P502170

£15.45
£15.45
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P502170

Hydraulic Filter, Cartridge
Outer Diameter 3.54 inch (89.92 mm)
Inner Diameter 1.93 inch (49 mm)
Length 10.91 inch (277.11 mm)
Collapse Burst 100 psi (6.9 bar)
Style Cartridge
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 89.92 mm (3.54 inch)
  • Inner Diameter: 49 mm (1.93 inch)
  • Length: 277.11 mm (10.91 inch)
  • Efficiency Beta 75: 37 micron
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.315 m (12.60 inch)
  • Packaged Weight: 0.792 kg (1.75 lb)
  • Packaged Volume: 0.004 m3 (0.14 ft3)

Other Information

  • Country of Origin: Indonesia
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330110935

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ALCOA MARINE HO1907
AMERICAN MOTORS CORPORATION HO1907
AMERICAN MOTORS CORPORATION SFH2410
DAEWOO 24741003A
EXMAN SFH2410
HITACHI 3502410
HITACHI 3502410N
HITACHI U3502410NT
HITACHI L3502410N
KOBELCO HE24070
KOBELCO H401

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
DAEWOO DH55 - EXCAVATOR - ISUZU 4JB1 -
DOOSAN DH50 - EXCAVATOR COMPACT - DOOSAN DC24 -
DOOSAN DL160 - LOADER WHEELED DL SERIES CUMMINS QSB4.5 -
DOOSAN MEGA 160 - LOADER WHEELED MEGA SERIES DOOSAN DB58 -
DOOSAN MEGA 160TC - LOADER WHEELED MEGA SERIES DOOSAN DB58 -
