• Donaldson Hydraulic Filter, Cartridge - Donaldson P174749
1 1

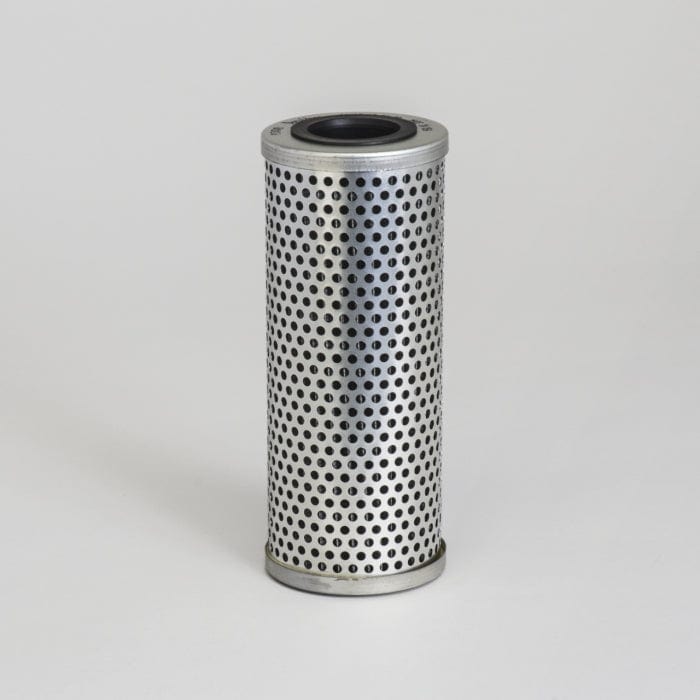

Hydraulic Filter, Cartridge - Donaldson P174749

Hydraulic Filter, Cartridge - Donaldson P174749

£95.75
£95.75
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P174749

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Mesh Rating: 45 micron
  • Outer Diameter: 93.47 mm (3.68 inch)
  • Inner Diameter: 44.45 mm (1.75 inch)
  • Length: 228.6 mm (9.00 inch)
  • Efficiency Beta 2: 45 micron
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Cartridge
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.118 m (4.70 inch)
  • Packaged Height: 0.250 m (10.00 inch)
  • Packaged Weight: 0.499 kg (1.10 lb)
  • Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330081358

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
VMC HF174749
