Hydraulic Filter, Cartridge - Donaldson P174610

Hydraulic Filter, Cartridge - Donaldson P174610

£28.27
£28.27
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P174610

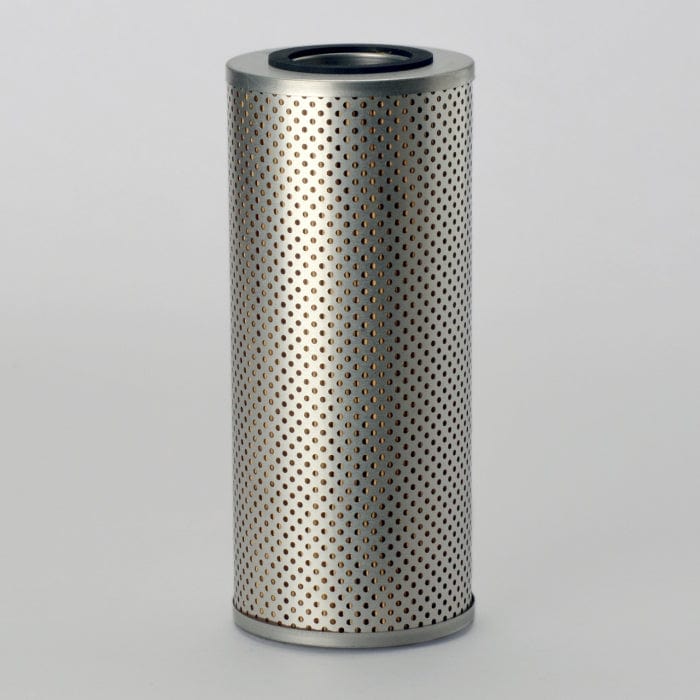

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 100.1 mm (3.94 inch)
  • Inner Diameter: 49.5 mm (1.95 inch)
  • Length: 230.4 mm (9.07 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 5.2 bar (75 psi)
  • Style: Cartridge
  • Media Type: Cellulose
  • Primary Application: ZINGA RE40910

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.236 m (9.45 inch)
  • Packaged Weight: 0.579 kg (1.28 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330025055

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 92409
ELGIN 1032085
LHA TIE120101
MCNEILUS 1108803
