• Donaldson Hydraulic Filter, Cartridge - Donaldson P174524
1 1

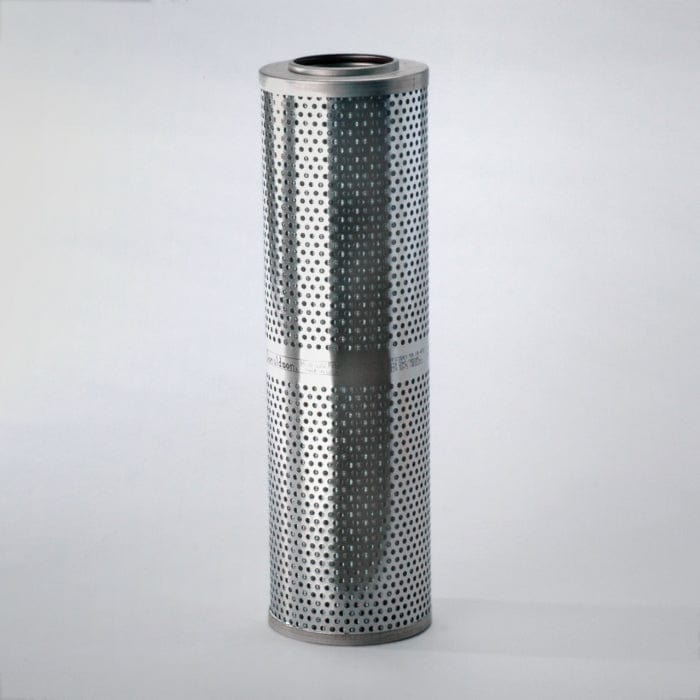

Hydraulic Filter, Cartridge - Donaldson P174524

Hydraulic Filter, Cartridge - Donaldson P174524

£69.87
£69.87
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P174524

Hydraulic Filter, Cartridge
Outer Diameter 3.75 inch (95.2 mm)
Inner Diameter 2.21 inch (56.26 mm)
Length 12.76 inch (324.1 mm)
Overall Length 12.93 inch (328.4 mm)
Efficiency Beta 1000 7 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 95.2 mm (3.75 inch)
  • Inner Diameter: 56.26 mm (2.21 inch)
  • Length: 324.1 mm (12.76 inch)
  • Overall Length: 328.4 mm (12.93 inch)
  • Efficiency Beta 1000: 7 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.105 m (4.20 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.343 m (13.70 inch)
  • Packaged Weight: 1.078 kg (2.38 lb)
  • Packaged Volume: 0.004 m3 (0.14 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330024652

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MP FILTRI MP3605
PTI P89100GFB
VICKERS V2691B4C03
VICKERS V2691B4V03
VMC HF174524
