• Donaldson Hydraulic Filter, Cartridge - Donaldson P174301
1 1

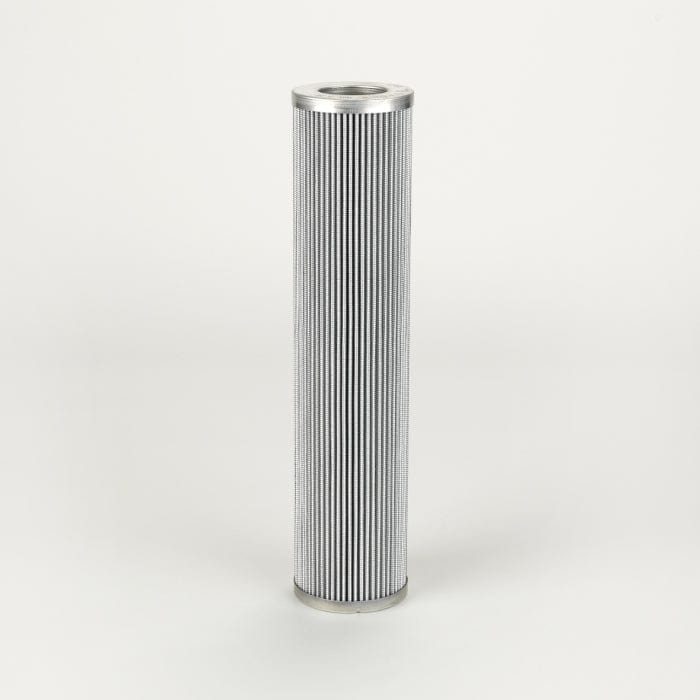

Hydraulic Filter, Cartridge - Donaldson P174301

Hydraulic Filter, Cartridge - Donaldson P174301

£68.99
£68.99
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P174301

Hydraulic Filter, Cartridge
Outer Diameter 3.32 inch (84.33 mm)
Inner Diameter 1.87 inch (47.49 mm)
Length 14.62 inch (371.35 mm)
Efficiency Beta 1000 23 micron
Collapse Burst 200 psi (13.8 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 84.33 mm (3.32 inch)
  • Inner Diameter: 47.49 mm (1.87 inch)
  • Length: 371.35 mm (14.62 inch)
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 13.8 bar (200 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.118 m (4.72 inch)
  • Packaged Width: 0.118 m (4.72 inch)
  • Packaged Height: 0.384 m (15.35 inch)
  • Packaged Weight: 0.810 kg (1.79 lb)
  • Packaged Volume: 0.006 m3 (0.20 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330024621

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
PTI PG120JH
PTI 9640514103
PTI 9640514152
PTI PG120CH
