• Donaldson Hydraulic Filter, Cartridge - Donaldson P174249
1 1

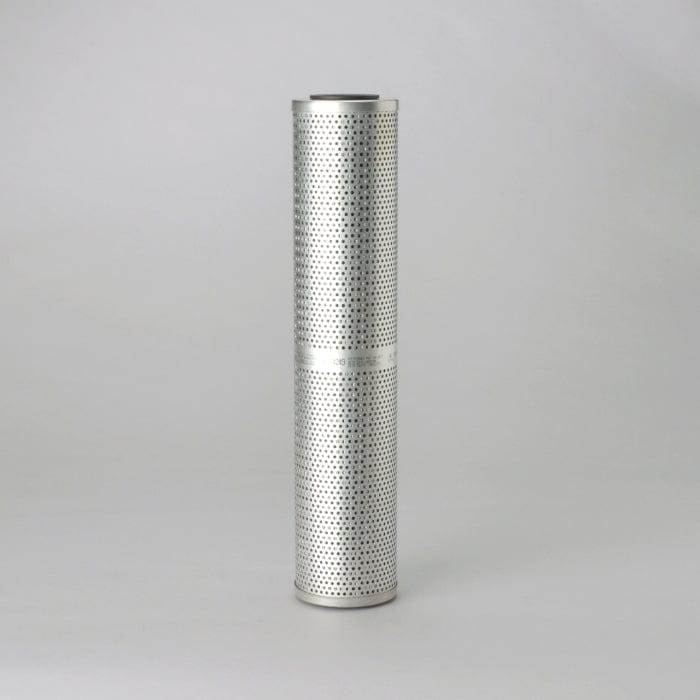

Hydraulic Filter, Cartridge - Donaldson P174249

Hydraulic Filter, Cartridge - Donaldson P174249

£69.32
£69.32
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P174249

Hydraulic Filter, Cartridge
Seal Material Nitrile
Outer Diameter 3.85 inch (97.9 mm)
Inner Diameter 1.61 inch (41 mm)
Length 18.43 inch (468.1 mm)
Efficiency Beta 1000 7 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Media Type Synthetic
Primary Application SCHROEDER KKS7
View full details

Specifications

Attributes

  • Seal Material: Nitrile
  • Outer Diameter: 97.9 mm (3.85 inch)
  • Inner Diameter: 41 mm (1.61 inch)
  • Length: 468.1 mm (18.43 inch)
  • Efficiency Beta 1000: 7 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Media Type: Synthetic
  • Primary Application: SCHROEDER KKS7

Packaged Dimensions

  • Packaged Length: 0.35 FT
  • Packaged Width: 0.35 FT
  • Packaged Height: 1.63 FT
  • Packaged Weight: 1.244 kg (2.74 lb)
  • Packaged Volume: 0.006 m3 (0.20 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330024492

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS COPCO 2657803843
BARKO HYDRAULICS 56500117
GRAINGER 1XPH4
GRAINGER 52YR73
MCNEILUS 1108714
VICKERS 737833
VICKERS V4051B6C10
VICKERS V4051B6V10
VMC HF174249
