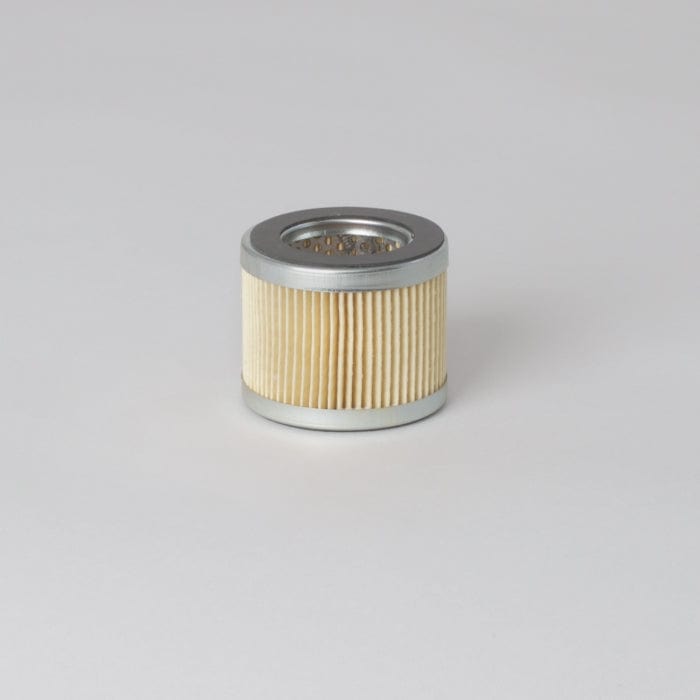

Hydraulic Filter, Cartridge - Donaldson P173597

Hydraulic Filter, Cartridge - Donaldson P173597

£46.18
£46.18
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P173597

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 70 mm (2.76 inch)
  • Inner Diameter: 43 mm (1.69 inch)
  • Length: 57 mm (2.24 inch)
  • Overall Length: 59 mm (2.32 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.093 m (3.70 inch)
  • Packaged Width: 0.088 m (3.50 inch)
  • Packaged Height: 0.125 m (5.00 inch)
  • Packaged Weight: 0.161 kg (0.36 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: Canada
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330023884

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
FLOW EZY 564106
VICKERS 10S10C
VMC HF173597
