• Donaldson Hydraulic Filter, Cartridge - Donaldson P173488
1 1

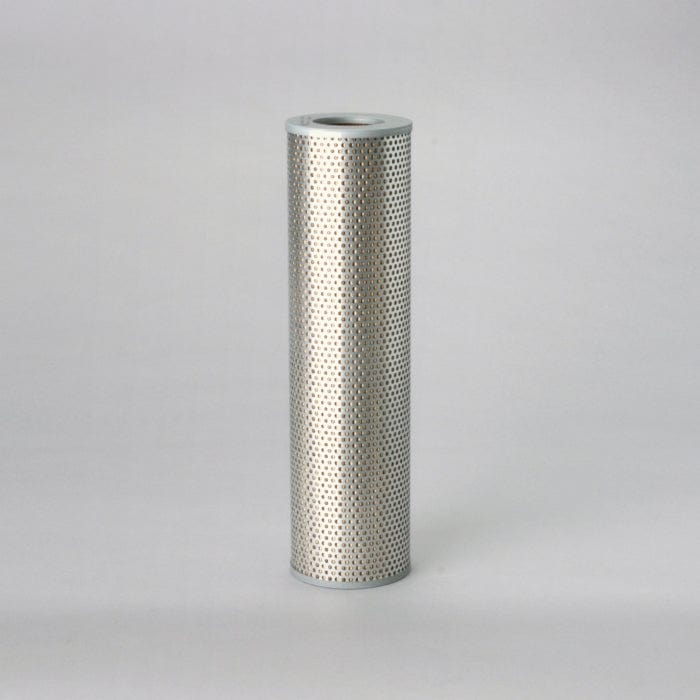

Hydraulic Filter, Cartridge - Donaldson P173488

Hydraulic Filter, Cartridge - Donaldson P173488

£24.47
£24.47
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P173488

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 89 mm (3.50 inch)
  • Inner Diameter: 50 mm (1.97 inch)
  • Length: 330 mm (12.99 inch)
  • Efficiency Beta 2: 7 micron
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Cellulose
  • Primary Application: ARGO P2093301

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.345 m (13.78 inch)
  • Packaged Height: 0.108 m (4.33 inch)
  • Packaged Weight: 0.661 kg (1.46 lb)
  • Packaged Volume: 0.004 m3 (0.15 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-06
  • HTS Code: 84212980 90
  • UPC Code: 742330104064

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO P2093301
ATLAS COPCO 8231101828
MANITOU 4197591A
VMC HF173488
WIRTGEN 5060

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
AHLMANN AL7 - LOADER WHEELED AL SERIES PERKINS 3.152.4 -
AHLMANN AL7C - LOADER WHEELED AL SERIES PERKINS 3.152.4 -
AHLMANN AL7D - LOADER WHEELED AL SERIES PERKINS 3.152.4 -
AHLMANN AL7G - LOADER WHEELED AL SERIES PERKINS 3.152.4 -
AHLMANN AL85T - LOADER WHEELED AL SERIES DEUTZ BF4L1011FT -
AHLMANN AS70 - LOADER WHEELED AS SERIES DEUTZ BF4L1011FT -
AHLMANN AS90 - LOADER WHEELED AS SERIES DEUTZ BF4L1011F -
AHLMANN AZ85 - LOADER WHEELED AZ SERIES DEUTZ BF41011F -
