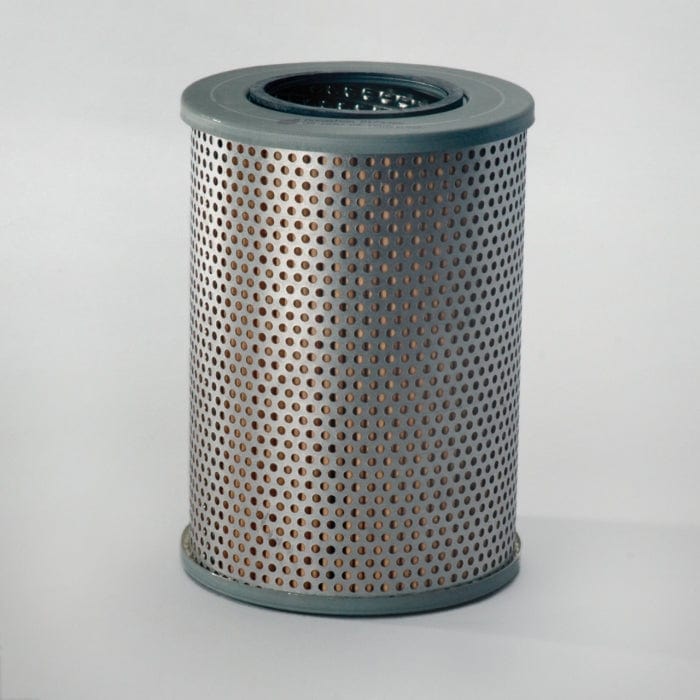

Hydraulic Filter, Cartridge - Donaldson P173485

Hydraulic Filter, Cartridge - Donaldson P173485

£34.88
£34.88
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P173485

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 118 mm (4.65 inch)
  • Inner Diameter: 59 mm (2.32 inch)
  • Length: 165 mm (6.50 inch)
  • Efficiency Beta 2: 10 micron
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.128 m (5.12 inch)
  • Packaged Width: 0.177 m (7.09 inch)
  • Packaged Height: 0.128 m (5.12 inch)
  • Packaged Weight: 0.758 kg (1.67 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330104033

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO P2121721
ARGO P2121723
ARGO P12211712
ARGO P1221723
ARGO V2121706
BIG A 92634
CATERPILLAR 5W5803
COOPERS AZH039
CROSLAND 341
DEMAG 695107
DEMAG 69510773
DEMAG 69022273
DEMAG 691865
FAUN 3299113
FILT FF435
HANOMAG TRAKTOREN 2894080M1
KAELBLE 8475682620
KAELBLE 6501361
KAELBLE 6501906
KNECHT HX6
KOMATSU 69510773
KOMATSU 691865
LOCKHEED LK3382
P.B.R. AC3233
P.B.R. WC3233
PACCAR Y05996007
TEREX 3600073062
VMC HF173485
WIRTGEN 5061

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR 206 - EXCAVATOR WHEELED 200 SERIES DEUTZ F4L912 -
CATERPILLAR 206 - EXCAVATOR WHEELED 200 SERIES PERKINS 4.236 -
CATERPILLAR 212 - EXCAVATOR WHEELED 200 SERIES PERKINS 4.236 -
