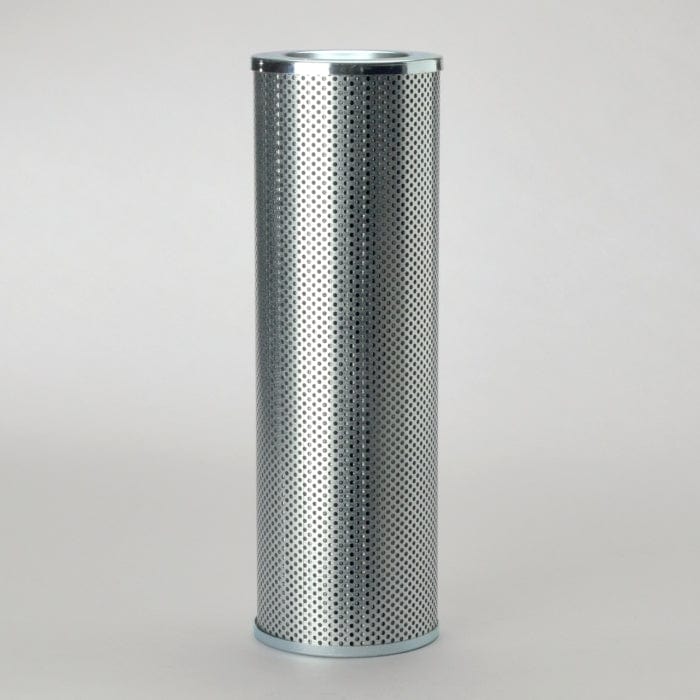

Hydraulic Filter, Cartridge - Donaldson P173096

Hydraulic Filter, Cartridge - Donaldson P173096

£60.40
£60.40
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P173096

Hydraulic Filter, Cartridge
Outer Diameter 4.96 inch (126 mm)
Inner Diameter 3.62 inch (92 mm)
Length 15.35 inch (390 mm)
Efficiency Beta 1000 11 micron
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Synthetic
Primary Application ATLAS WEYHAUSEN 1691052
View full details

Specifications

Attributes

  • Outer Diameter: 126 mm (4.96 inch)
  • Inner Diameter: 92 mm (3.62 inch)
  • Length: 390 mm (15.35 inch)
  • Efficiency Beta 1000: 11 micron
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Synthetic
  • Primary Application: ATLAS WEYHAUSEN 1691052

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.148 m (5.90 inch)
  • Packaged Height: 0.413 m (16.50 inch)
  • Packaged Weight: 1.631 kg (3.60 lb)
  • Packaged Volume: 0.009 m3 (0.33 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330121573

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS WEYHAUSEN 1691052
ATLAS WEYHAUSEN 4653949
F.B.O. CRS43002
MP FILTRI MR6303A10A
VMC HF173096
WALGAHN-MOTORENTECHN 893078
WALGAHN-MOTORENTECHN 00893078
