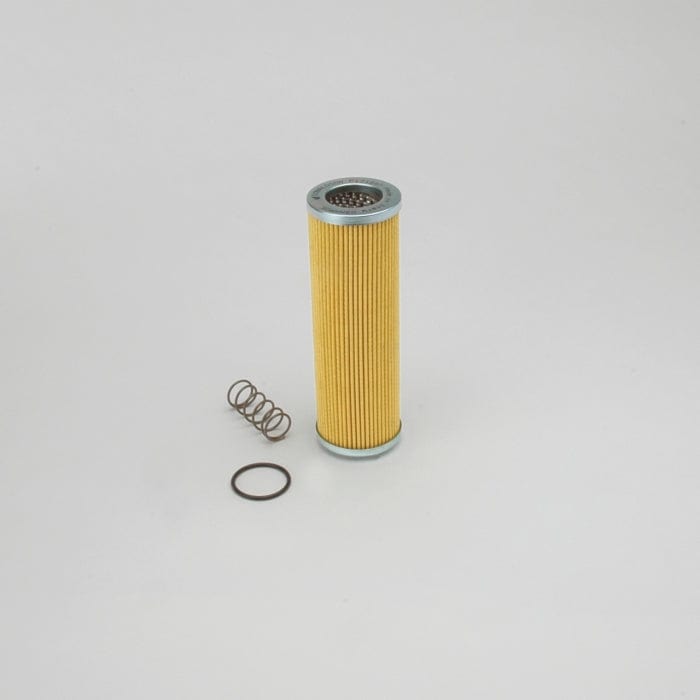

Hydraulic Filter, Cartridge - Donaldson P171840

Hydraulic Filter, Cartridge - Donaldson P171840

£12.93
£12.93
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171840

Hydraulic Filter, Cartridge
Outer Diameter 2.76 inch (70 mm)
Inner Diameter 1.65 inch (42 mm)
Length 8.23 inch (209 mm)
Gasket OD 1.83 inch (46.6 mm)
Gasket ID 1.56 inch (39.6 mm)
Overall Length 8.44 inch (214.5 mm)
Efficiency Beta 2 10 micron
Efficiency Beta 200 32 micron
Efficiency Beta 1000 36 micron
Efficiency Test Std ISO 16889
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Maximum Operating Temperature 248 °F (120 °C)
Style Cartridge
Series FIK
Media Type Cellulose
Primary Application DONALDSON FSK
View full details

Specifications

Attributes

  • Outer Diameter: 70 mm (2.76 inch)
  • Inner Diameter: 42 mm (1.65 inch)
  • Length: 209 mm (8.23 inch)
  • Gasket OD: 46.6 mm (1.83 inch)
  • Gasket ID: 39.6 mm (1.56 inch)
  • Overall Length: 214.5 mm (8.44 inch)
  • Efficiency Beta 2: 10 micron
  • Efficiency Beta 200: 32 micron
  • Efficiency Beta 1000: 36 micron
  • Efficiency Test Std: ISO 16889
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Maximum Operating Temperature: 120 °C (248 °F)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Cellulose
  • Primary Application: DONALDSON FSK

Packaged Dimensions

  • Packaged Length: 0.079 m (3.15 inch)
  • Packaged Width: 0.079 m (3.15 inch)
  • Packaged Height: 0.246 m (9.84 inch)
  • Packaged Weight: 0.395 kg (0.87 lb)
  • Packaged Volume: 0.002 m3 (0.06 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-04
  • HTS Code: 8421298090
  • UPC Code: 742330022948

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSCH-REXROTH 1457431608
CASE/CASE IH 2981644
F.B.O. CR1501
IKRON HHC04169
IKRON HHC03612
LOESING 140170
MAN 36066680000
MP FILTRI MF1003P10NBP01
MP FILTRI MF1003P10NB
MP FILTRI MF1003AP10NB
NEW HOLLAND FF304329001
NEW HOLLAND 8210331
NEW HOLLAND FF3043029001
NEW HOLLAND 7872
ORENSTEIN & KOPPEL 8210331
TEREX 8210331
