• Donaldson Hydraulic Filter, Cartridge - Donaldson P171827
1 1

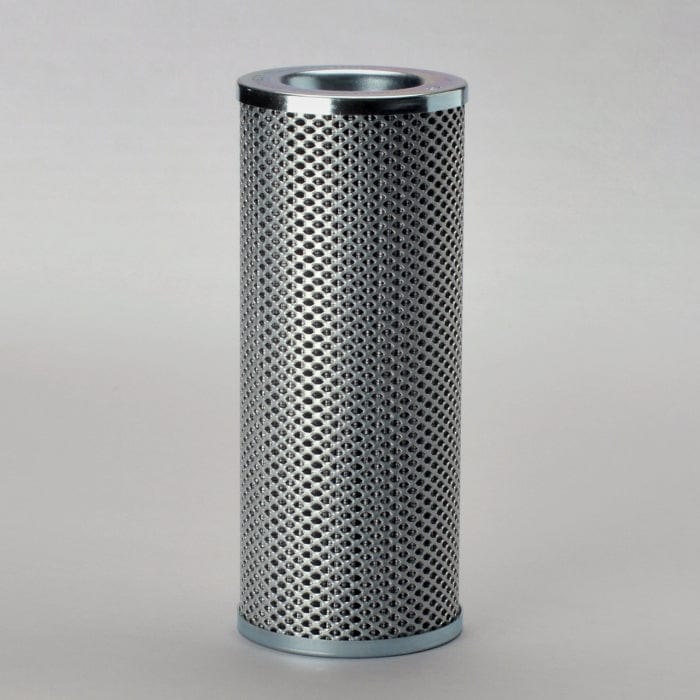

Hydraulic Filter, Cartridge - Donaldson P171827

Hydraulic Filter, Cartridge - Donaldson P171827

£34.56
£34.56
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171827

Hydraulic Filter, Cartridge
Outer Diameter 4.17 inch (106 mm)
Inner Diameter 2.52 inch (64 mm)
Length 10.24 inch (260 mm)
Efficiency Beta 1000 11 micron
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Synthetic
Primary Application FAIREY ARLON TXW5CC10
View full details

Specifications

Attributes

  • Outer Diameter: 106 mm (4.17 inch)
  • Inner Diameter: 64 mm (2.52 inch)
  • Length: 260 mm (10.24 inch)
  • Efficiency Beta 1000: 11 micron
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Synthetic
  • Primary Application: FAIREY ARLON TXW5CC10

Packaged Dimensions

  • Packaged Length: 0.135 m (5.40 inch)
  • Packaged Width: 0.133 m (5.30 inch)
  • Packaged Height: 0.310 m (12.40 inch)
  • Packaged Weight: 0.921 kg (2.03 lb)
  • Packaged Volume: 0.006 m3 (0.21 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330022856

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 312136
CATERPILLAR 3I2136
F.B.O. CRS23002
GROVE 00551980
HYDREMA 7100292
JCB 32925291
KRUPP 20551980
MCNEILUS 1145043
MP FILTRI MR2503A10A
MP FILTRI MR2503A10AP01
VMC HF171827
VOLVO E6050029
