• Donaldson Hydraulic Filter, Cartridge - Donaldson P171819
1 1

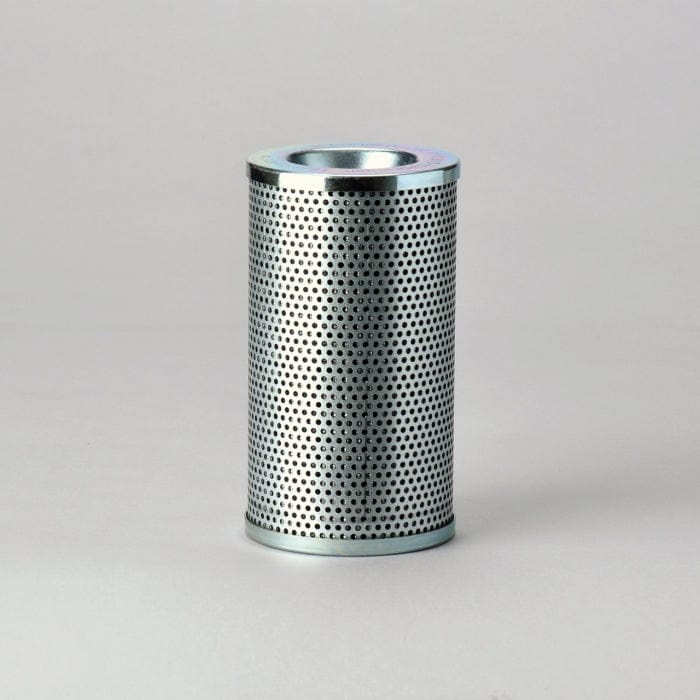

Hydraulic Filter, Cartridge - Donaldson P171819

Hydraulic Filter, Cartridge - Donaldson P171819

£30.27
£30.27
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171819

Hydraulic Filter, Cartridge
Outer Diameter 4.17 inch (106 mm)
Inner Diameter 2.52 inch (64 mm)
Length 7.48 inch (190 mm)
Efficiency Beta 1000 23 micron
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Synthetic
Primary Application FAIREY ARLON TXW4CC25
View full details

Specifications

Attributes

  • Outer Diameter: 106 mm (4.17 inch)
  • Inner Diameter: 64 mm (2.52 inch)
  • Length: 190 mm (7.48 inch)
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Synthetic
  • Primary Application: FAIREY ARLON TXW4CC25

Packaged Dimensions

  • Packaged Length: 0.115 m (4.60 inch)
  • Packaged Width: 0.115 m (4.60 inch)
  • Packaged Height: 0.228 m (9.10 inch)
  • Packaged Weight: 0.839 kg (1.85 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330022771

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
F.B.O. CRS18003
LOESING 140071
MERLO 32321
MP FILTRI MR2502A25A
MP FILTRI MR2502A25AP01
VAPORMATIC VPK5596
