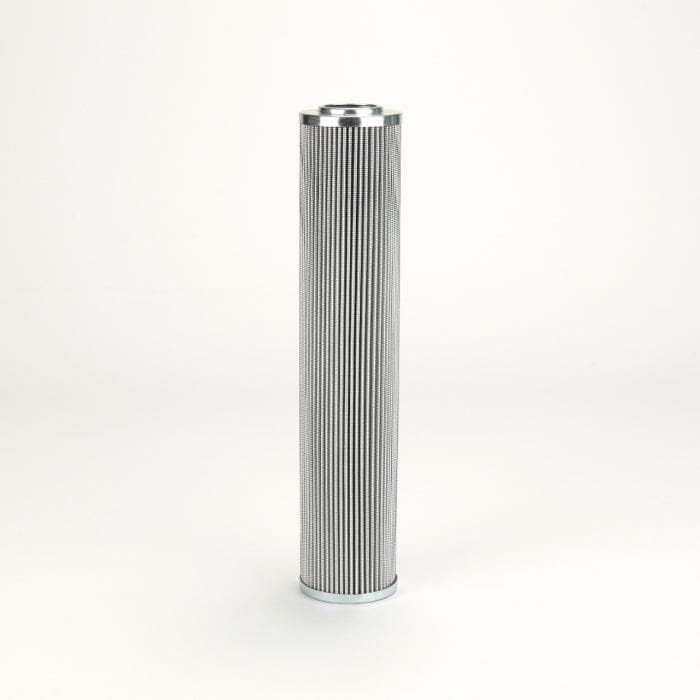

Hydraulic Filter, Cartridge - Donaldson P171748

Hydraulic Filter, Cartridge - Donaldson P171748

£63.60
£63.60
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171748

Hydraulic Filter, Cartridge
Outer Diameter 3.07 inch (78 mm)
Inner Diameter 1.59 inch (40.4 mm)
Length 14.96 inch (380 mm)
Efficiency Beta 1000 23 micron
Collapse Burst 290 psi (20 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Nitrile
  • Outer Diameter: 78 mm (3.07 inch)
  • Inner Diameter: 40.4 mm (1.59 inch)
  • Length: 380 mm (14.96 inch)
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 20 bar (290 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.079 m (3.15 inch)
  • Packaged Width: 0.079 m (3.15 inch)
  • Packaged Height: 0.404 m (16.14 inch)
  • Packaged Weight: 1.060 kg (2.34 lb)
  • Packaged Volume: 0.003 m3 (0.09 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330022443

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DIAGNETICS LNE415B25
DMIC DHE6B
F.B.O. AP45653
F.B.O. 45653
MP FILTRI HP3203P25AN
MP FILTRI HP3203A25AN
MP FILTRI HP3203A25NA
MP FILTRI HP3203A25ANP01
OMT CHP623F25XN
VICKERS FP3203AP25N
VICKERS FP3203AA25N
