• Donaldson Hydraulic Filter, Cartridge - Donaldson P171746
1 1

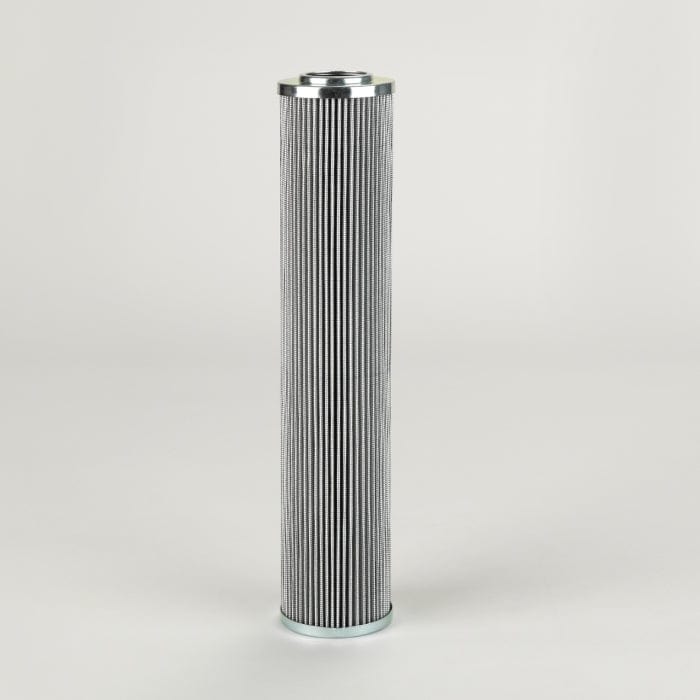

Hydraulic Filter, Cartridge - Donaldson P171746

Hydraulic Filter, Cartridge - Donaldson P171746

£89.79
£89.79
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171746

Hydraulic Filter, Cartridge
Outer Diameter 3.07 inch (78 mm)
Inner Diameter 1.59 inch (40.4 mm)
Length 14.96 inch (380 mm)
Efficiency Beta 1000 7 micron
Collapse Burst 290 psi (20 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 78 mm (3.07 inch)
  • Inner Diameter: 40.4 mm (1.59 inch)
  • Length: 380 mm (14.96 inch)
  • Efficiency Beta 1000: 7 micron
  • Collapse Burst: 20 bar (290 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.085 m (3.40 inch)
  • Packaged Width: 0.085 m (3.40 inch)
  • Packaged Height: 0.403 m (16.10 inch)
  • Packaged Weight: 1.012 kg (2.23 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330022429

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DIAGNETICS LNE415B05
DMIC DHE6C
F.B.O. 45651
F.B.O. AP45651
MP FILTRI HP3203A03AN
MP FILTRI HP3203A03ANP01
MP FILTRI HP3203A06AN
MP FILTRI HP3203A06ANP01
MP FILTRI HP3203A03NA
MP FILTRI HP3202P03AN
OMT CHP622F03XN
VICKERS FP3202AA03N
VICKERS FP3202AP03N
