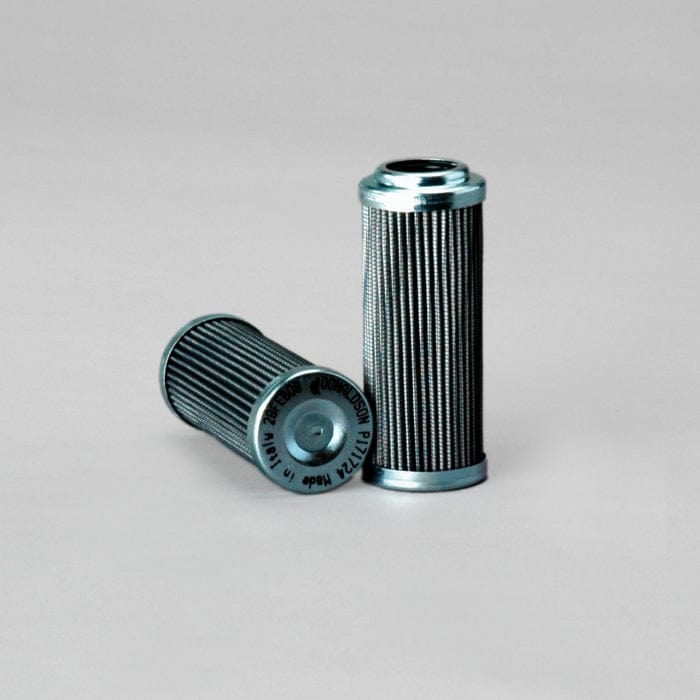

Hydraulic Filter, Cartridge - Donaldson P171724

Hydraulic Filter, Cartridge - Donaldson P171724

£24.91
£24.91
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171724

Hydraulic Filter, Cartridge
Outer Diameter 1.81 inch (46 mm)
Inner Diameter 1.02 inch (25.8 mm)
Length 4.45 inch (113 mm)
Efficiency Beta 2 60 micron
Collapse Burst 290 psi (20 bar)
Style Cartridge
Media Type Wire Mesh
View full details

Specifications

Attributes

  • Mesh Rating: 60 micron
  • Outer Diameter: 46 mm (1.81 inch)
  • Inner Diameter: 25.8 mm (1.02 inch)
  • Length: 113 mm (4.45 inch)
  • Efficiency Beta 2: 60 micron
  • Collapse Burst: 20 bar (290 psi)
  • Style: Cartridge
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.059 m (2.36 inch)
  • Packaged Width: 0.059 m (2.36 inch)
  • Packaged Height: 0.177 m (7.09 inch)
  • Packaged Weight: 0.187 kg (0.41 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-02
  • HTS Code: 8421298090
  • UPC Code: 742330120170

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CENTRO GRU 8140077
MODINA CH152MS11
MP FILTRI HPO652M60AN
MP FILTRI HP0652M60ANP99
