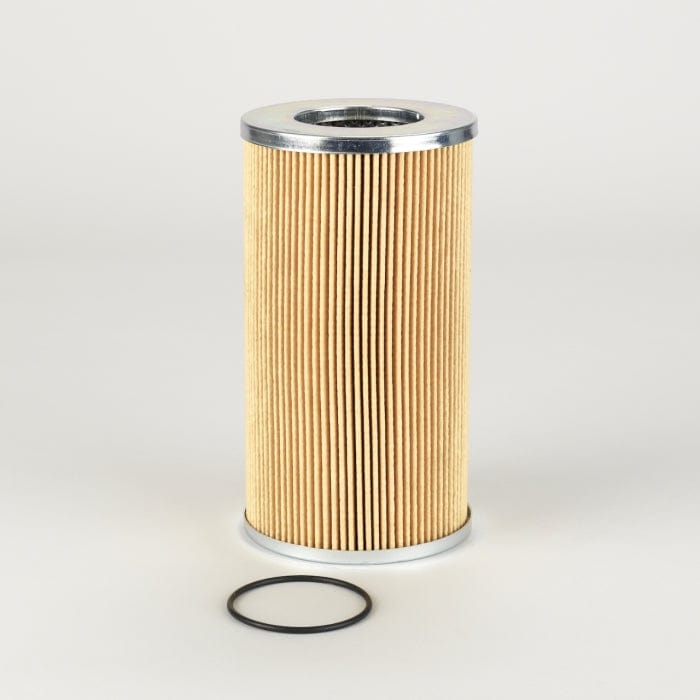

Hydraulic Filter, Cartridge - Donaldson P171674

Hydraulic Filter, Cartridge - Donaldson P171674

£41.74
£41.74
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171674

Hydraulic Filter, Cartridge
Outer Diameter 5.39 inch (137 mm)
Inner Diameter 2.99 inch (76 mm)
Length 9.84 inch (250 mm)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 23 micron
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 137 mm (5.39 inch)
  • Inner Diameter: 76 mm (2.99 inch)
  • Length: 250 mm (9.84 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.148 m (5.90 inch)
  • Packaged Width: 0.148 m (5.90 inch)
  • Packaged Height: 0.275 m (11.00 inch)
  • Packaged Weight: 1.520 kg (3.35 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330083918

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
F.B.O. C6301
MODINA RH150CD1
MODINA RH150DC1
MP FILTRI CU630P10
MP FILTRI CU630P10N
