• Donaldson Hydraulic Filter, Cartridge - Donaldson P171664
1 1

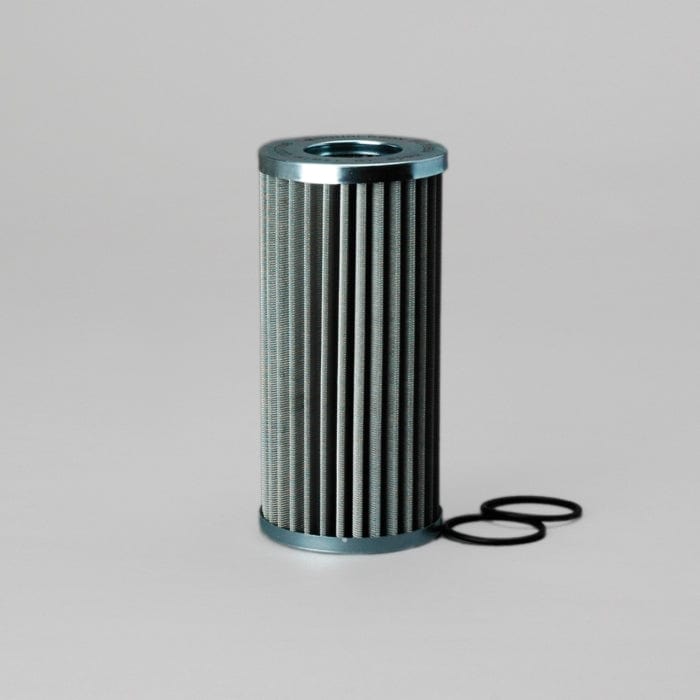

Hydraulic Filter, Cartridge - Donaldson P171664

Hydraulic Filter, Cartridge - Donaldson P171664

£22.80
£22.80
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171664

Hydraulic Filter, Cartridge
Outer Diameter 3.90 inch (99 mm)
Inner Diameter 2.05 inch (52 mm)
Length 8.27 inch (210 mm)
Efficiency Beta 2 90 micron
Collapse Burst 145 psi (10 bar)
Style Cartridge
Media Type Wire Mesh
View full details

Specifications

Attributes

  • Mesh Rating: 90 micron
  • Outer Diameter: 99 mm (3.90 inch)
  • Inner Diameter: 52 mm (2.05 inch)
  • Length: 210 mm (8.27 inch)
  • Efficiency Beta 2: 90 micron
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.246 m (9.84 inch)
  • Packaged Weight: 0.911 kg (2.01 lb)
  • Packaged Volume: 0.003 m3 (0.09 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-10
  • HTS Code: 8421298090
  • UPC Code: 742330119723

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
F.B.O. C250
MODINA RH70MN1
MODINA RH70MCV1
MP FILTRI CU250M90NP01
MP FILTRI CA250M125
MP FILTRI CU250M125N
MP FILTRI CU250M125
MP FILTRI CA250M90N
MP FILTRI CU250M90N
