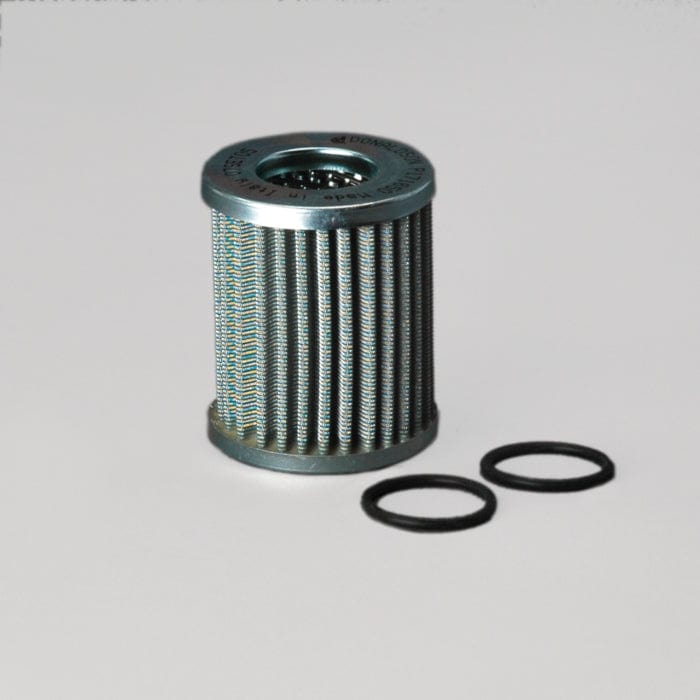

Hydraulic Filter, Cartridge - Donaldson P171650
Hydraulic Filter, Cartridge - Donaldson P171650
Regular price
£10.24
Regular price
Sale price
£10.24
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P171650
Hydraulic Filter, Cartridge| Outer Diameter | 2.76 inch (70 mm) |
| Inner Diameter | 1.41 inch (35.8 mm) |
| Length | 3.35 inch (85 mm) |
| Efficiency Beta 2 | 90 micron |
| Collapse Burst | 145 psi (10 bar) |
| Style | Cartridge |
| Media Type | Wire Mesh |
Share
Collapsible content
Specifications
Attributes
- Mesh Rating: 90 micron
- Outer Diameter: 70 mm (2.76 inch)
- Inner Diameter: 35.8 mm (1.41 inch)
- Length: 85 mm (3.35 inch)
- Efficiency Beta 2: 90 micron
- Collapse Burst: 10 bar (145 psi)
- Style: Cartridge
- Media Type: Wire Mesh
Packaged Dimensions
- Packaged Length: 0.079 m (3.15 inch)
- Packaged Width: 0.079 m (3.15 inch)
- Packaged Height: 0.108 m (4.33 inch)
- Packaged Weight: 0.260 kg (0.57 lb)
- Packaged Volume: 0.001 m3 (0.02 ft3)
Other Information
- Country of Origin: Italy
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330119594
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| F.B.O. | C40 | |
| MODINA | RH15MCV1 | |
| MODINA | RH15MN1 | |
| MP FILTRI | CU40M125N | |
| MP FILTRI | CU40M125V | |
| MP FILTRI | CU40M90N | |
| MP FILTRI | CU40M125 | |
| MP FILTRI | CU40M90NP01 | |
| MP FILTRI | CU040M90N |
