• Donaldson Hydraulic Filter, Cartridge - Donaldson P171582
1 1

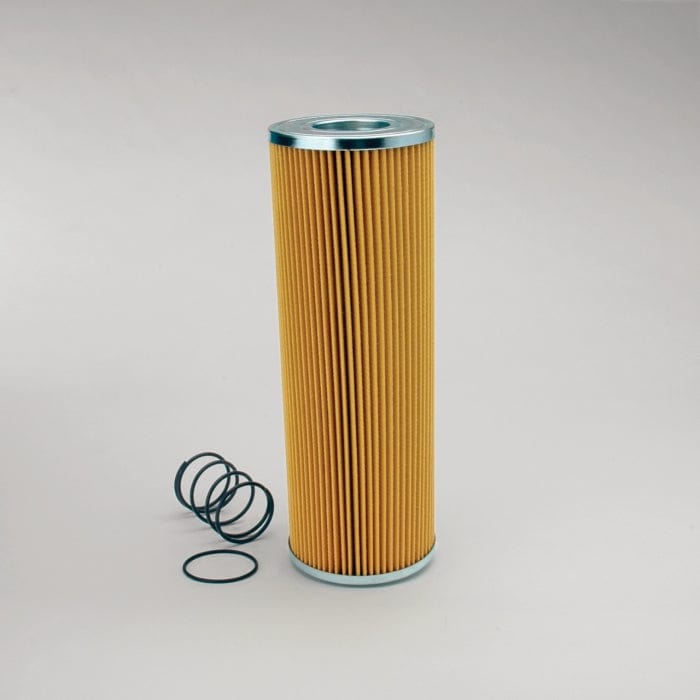

Hydraulic Filter, Cartridge - Donaldson P171582

Hydraulic Filter, Cartridge - Donaldson P171582

£42.32
£42.32
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171582

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 65 mm (2.56 inch)
  • Length: 400 mm (15.75 inch)
  • Efficiency Beta 2: 27 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.148 m (5.90 inch)
  • Packaged Width: 0.143 m (5.70 inch)
  • Packaged Height: 0.415 m (16.60 inch)
  • Packaged Weight: 1.633 kg (3.60 lb)
  • Packaged Volume: 0.009 m3 (0.32 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330083864

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DMIC DRE7B
DMIC D10800BN
F.B.O. CR8003
MI-JACK F2470543506
MI-JACK F2470963506
MP FILTRI F75P20A
