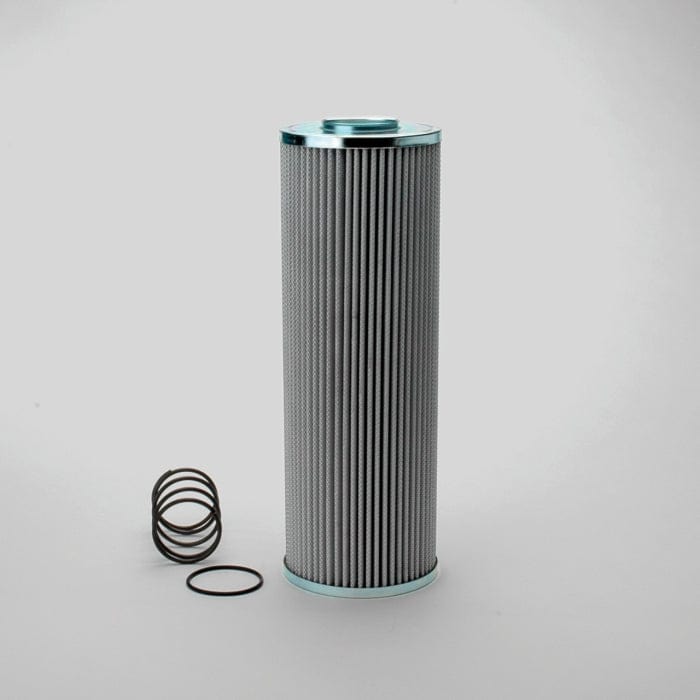

Hydraulic Filter, Cartridge - Donaldson P171580

Hydraulic Filter, Cartridge - Donaldson P171580

£79.81
£79.81
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171580

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 65 mm (2.56 inch)
  • Length: 400 mm (15.75 inch)
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.145 m (5.80 inch)
  • Packaged Height: 0.415 m (16.60 inch)
  • Packaged Weight: 2.084 kg (4.60 lb)
  • Packaged Volume: 0.009 m3 (0.32 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330022214

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 4468417
DIAMOND CR8003F
F.B.O. CR80003
ILVA 6714530
ING. BONFIGLIOLI 9FIL011
KALMAR 2470963505
LOESING 140132
MI-JACK F2470963505
MODINA RE200FV1
MP FILTRI F75A25NA
TEREX 15503254
VMC HF171580
