• Donaldson Hydraulic Filter, Cartridge - Donaldson P171579
1 1

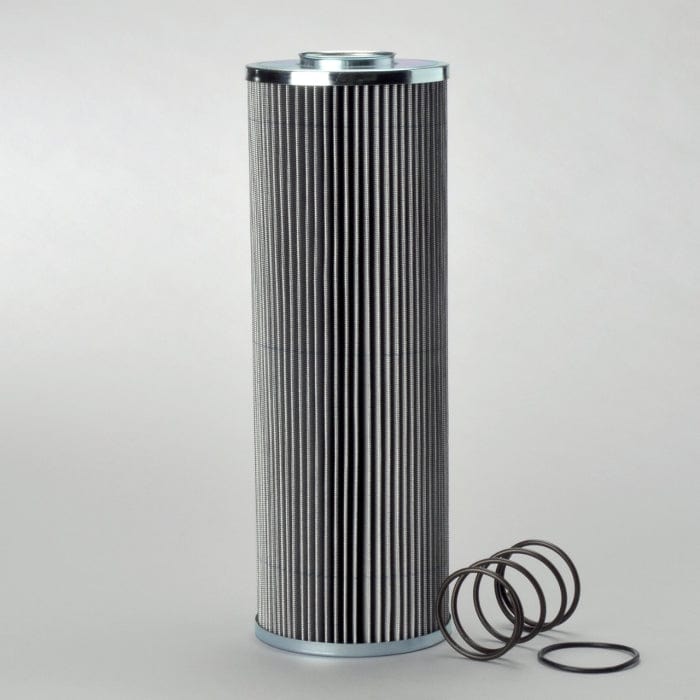

Hydraulic Filter, Cartridge - Donaldson P171579

Hydraulic Filter, Cartridge - Donaldson P171579

£115.69
£115.69
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171579

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 66 mm (2.60 inch)
  • Length: 400 mm (15.75 inch)
  • Efficiency Beta 1000: 11 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.145 m (5.80 inch)
  • Packaged Height: 0.415 m (16.60 inch)
  • Packaged Weight: 2.050 kg (4.52 lb)
  • Packaged Volume: 0.009 m3 (0.32 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-07
  • HTS Code: 8421298090
  • UPC Code: 742330022207

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DEZZI 350096
DMIC DRE7C
F.B.O. CR80002
LOESING 140038
MODINA RE200FD1
MP FILTRI F75A10NA
MP FILTRI F75P10NA
SAUER SUNDSTRAND SQC00127
SAUER SUNDSTRAND 1511052
