• Donaldson Hydraulic Filter, Cartridge - Donaldson P171575
1 1

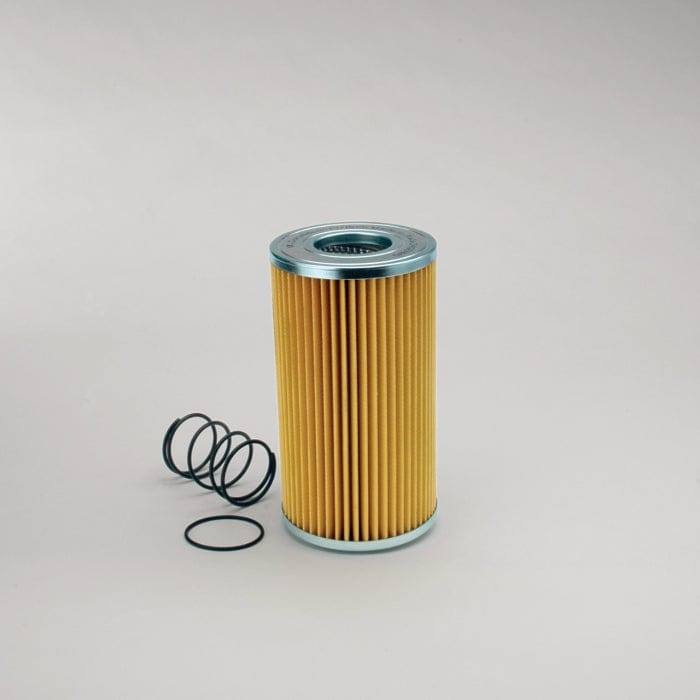

Hydraulic Filter, Cartridge - Donaldson P171575

Hydraulic Filter, Cartridge - Donaldson P171575

£35.33
£35.33
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171575

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 65 mm (2.56 inch)
  • Length: 250 mm (9.84 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Cellulose
  • Primary Application: F.B.O. CR6001

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.148 m (5.90 inch)
  • Packaged Height: 0.270 m (10.80 inch)
  • Packaged Weight: 1.277 kg (2.82 lb)
  • Packaged Volume: 0.006 m3 (0.21 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330083833

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CEDARAPIDS 459300016512
DMIC D10600AN
DMIC DRE6A
F.B.O. CR6001
JOHN DEERE F302094J
JOHN DEERE F302094
LOESING 140062
MODINA RE160CD1
MP FILTRI F60P10A
RAMA MOTORI JHP171575
SAUER SUNDSTRAND 1511033
TIMBERJACK F302094
TIMBERJACK F032094
