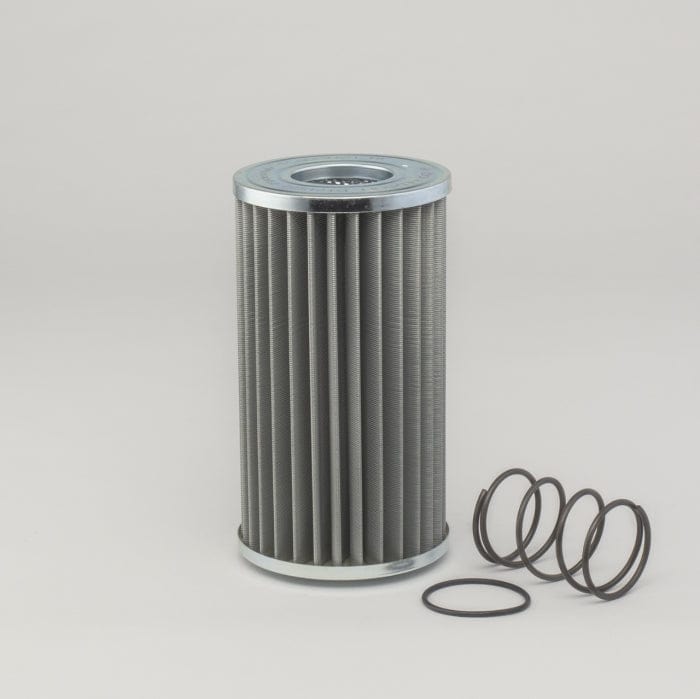

Hydraulic Filter, Cartridge - Donaldson P171572

Hydraulic Filter, Cartridge - Donaldson P171572

£49.27
£49.27
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171572

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Mesh Rating: 90 micron
  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 65 mm (2.56 inch)
  • Length: 250 mm (9.84 inch)
  • Efficiency Beta 2: 90 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.148 m (5.91 inch)
  • Packaged Width: 0.148 m (5.91 inch)
  • Packaged Height: 0.276 m (11.02 inch)
  • Packaged Weight: 1.810 kg (3.99 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330022153

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
F.B.O. CR600
LOESING 140183
MODINA RE160MCV1
MP FILTRI F60M90A
