• Donaldson Hydraulic Filter, Cartridge - Donaldson P171570
1 1

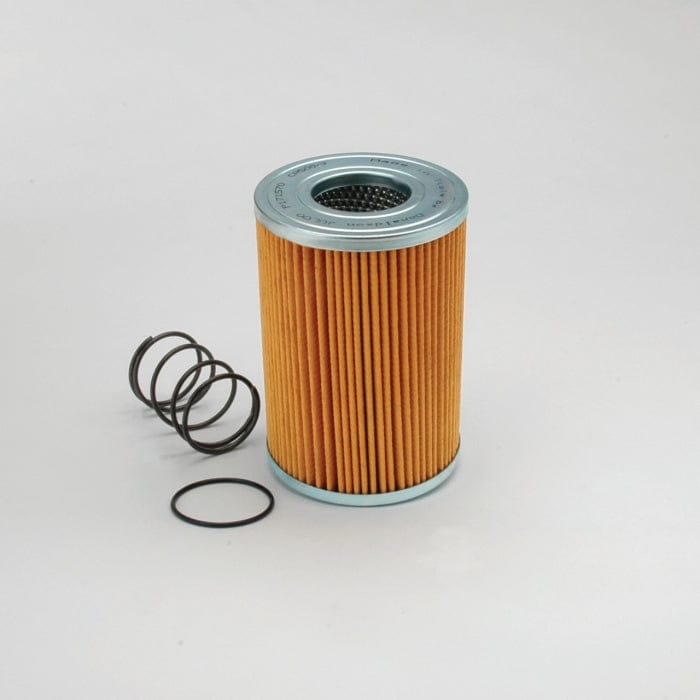

Hydraulic Filter, Cartridge - Donaldson P171570

Hydraulic Filter, Cartridge - Donaldson P171570

£30.67
£30.67
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171570

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 65.5 mm (2.58 inch)
  • Length: 203 mm (7.99 inch)
  • Efficiency Beta 2: 17 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.143 m (5.70 inch)
  • Packaged Width: 0.143 m (5.70 inch)
  • Packaged Height: 0.275 m (11.00 inch)
  • Packaged Weight: 1.134 kg (2.50 lb)
  • Packaged Volume: 0.006 m3 (0.21 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330022139

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 1819106
DMIC DME6B
DMIC DTE6B
F.B.O. CR5003
FARID INDUSTRIE 927007021
FIAT 1819106
FODEN Y05805301
KALMAR 5463
LHA TIE24252
LOESING 140057
PALFINGER W01004642
SAUER DANFOSS INC SQC00055
SAUER SUNDSTRAND 607302
SAUER SUNDSTRAND 1511030
TERBERG T28040889
VMC HF171570
