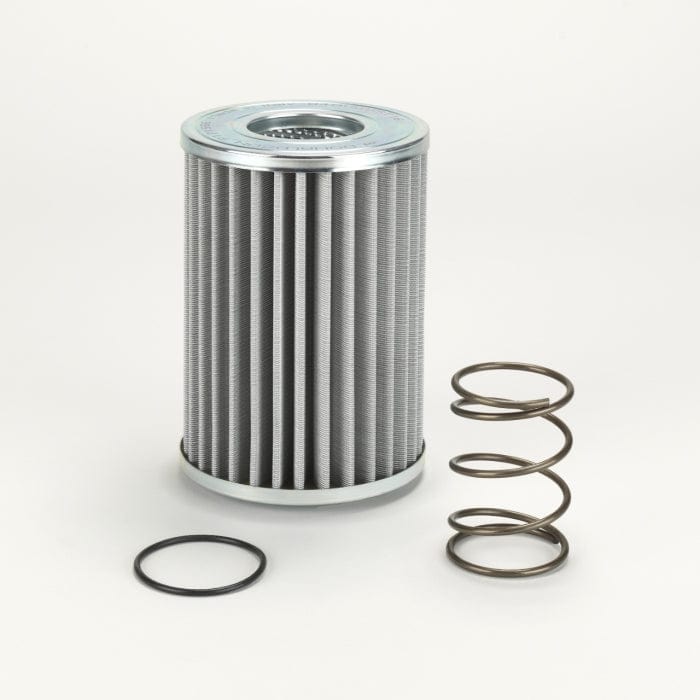

Hydraulic Filter, Cartridge - Donaldson P171566

Hydraulic Filter, Cartridge - Donaldson P171566

£43.08
£43.08
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171566

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Mesh Rating: 90 micron
  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 65 mm (2.56 inch)
  • Length: 210 mm (8.27 inch)
  • Efficiency Beta 2: 90 micron
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.148 m (5.90 inch)
  • Packaged Height: 0.275 m (11.00 inch)
  • Packaged Weight: 1.458 kg (3.22 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330022092

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AGCO 6207974M1
F.B.O. CR5006
F.B.O. CR500
LOESING 140031
MERLO 635054
VMC HF171566
