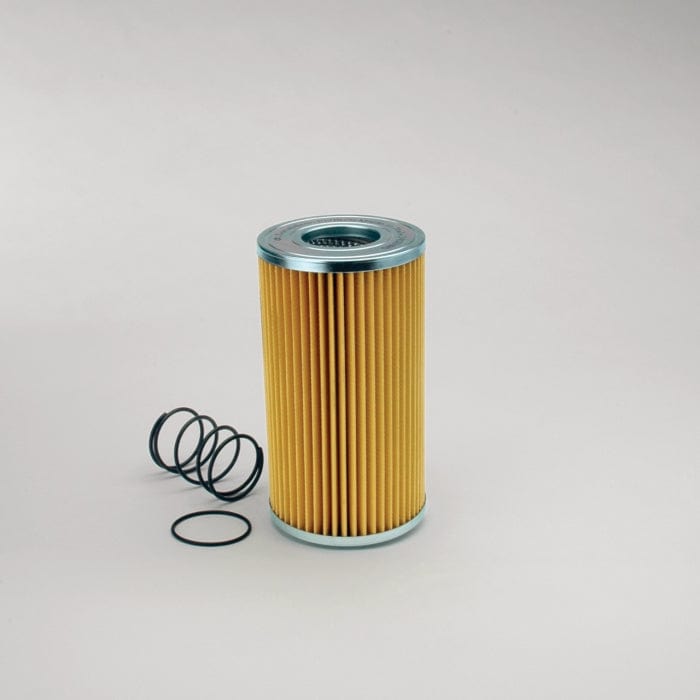

Hydraulic Filter, Cartridge - Donaldson P171565

Hydraulic Filter, Cartridge - Donaldson P171565

£36.80
£36.80
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171565

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Mesh Rating: 60 micron
  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 65.5 mm (2.58 inch)
  • Length: 203 mm (7.99 inch)
  • Efficiency Beta 2: 60 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.148 m (5.90 inch)
  • Packaged Width: 0.148 m (5.90 inch)
  • Packaged Height: 0.278 m (11.10 inch)
  • Packaged Weight: 0.975 kg (2.15 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330022085

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ASTRA 127745
AVN HYDRAULICS 136600
CORMACH 8140050
DMIC D10330FN
F.B.O. CR3306
FARID INDUSTRIE 927007010
LOESING 140052
MP FILTRI F40M60A
TECNO COMP TR1224
VMC HF171565
