• Donaldson Hydraulic Filter, Cartridge - Donaldson P171564
1 1

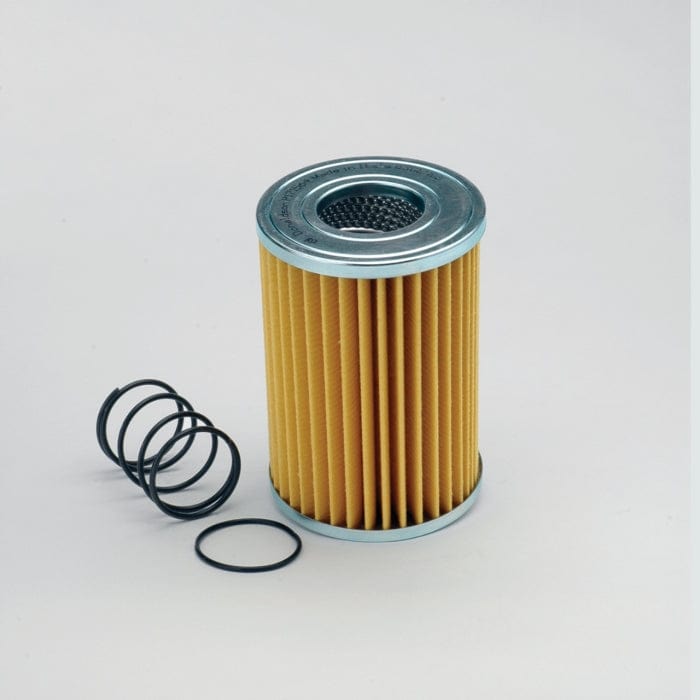

Hydraulic Filter, Cartridge - Donaldson P171564

Hydraulic Filter, Cartridge - Donaldson P171564

£20.91
£20.91
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171564

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 65 mm (2.56 inch)
  • Length: 203 mm (7.99 inch)
  • Efficiency Beta 2: 27 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Cellulose
  • Primary Application: F.B.O. CR3303

Packaged Dimensions

  • Packaged Length: 0.148 m (5.90 inch)
  • Packaged Width: 0.148 m (5.90 inch)
  • Packaged Height: 0.278 m (11.10 inch)
  • Packaged Weight: 1.066 kg (2.35 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330083826

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CORMACH 8140023
DMIC DME5B
DMIC DRE5B
DMIC DTE5B
F.B.O. CR3303
GREYFRIARS GHF7156
GREYFRIARS GHF7157
KOMATSU 848101187
KOMATSU 21D6011130
LHA TIE24252
LOESING 140051
MODINA 48157
MP FILTRI F40P20A
RAMA MOTORI JHP171564
SAUER SUNDSTRAND 607300
SAUER SUNDSTRAND 1511027
TECHNOCAR OP375
TERBERG T27105295
VMC HF171564

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
KOMATSU PC95-1 - EXCAVATOR TRACKED - - PC95-1 -
