• Donaldson Hydraulic Filter, Cartridge - Donaldson P171563
1 1

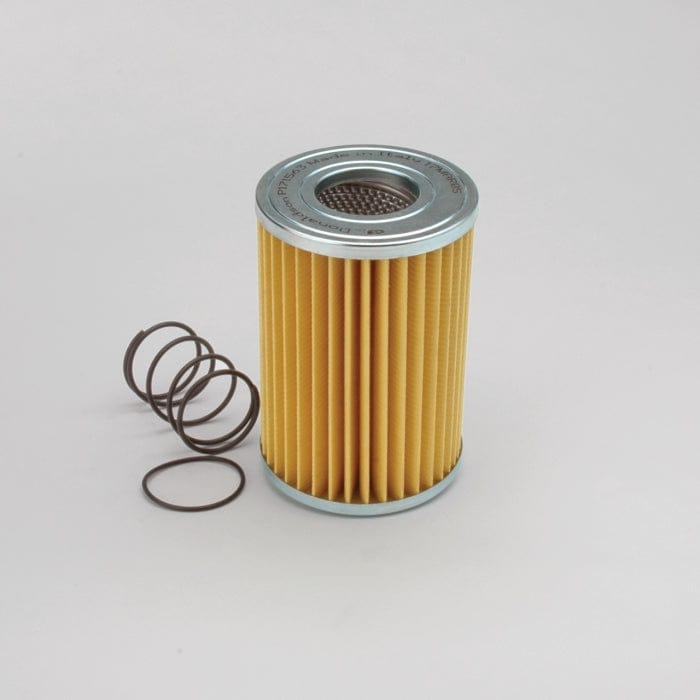

Hydraulic Filter, Cartridge - Donaldson P171563

Hydraulic Filter, Cartridge - Donaldson P171563

£23.07
£23.07
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171563

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 65 mm (2.56 inch)
  • Length: 203 mm (7.99 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Cellulose
  • Primary Application: F.B.O. CR3301

Packaged Dimensions

  • Packaged Length: 0.148 m (5.91 inch)
  • Packaged Width: 0.148 m (5.91 inch)
  • Packaged Height: 0.276 m (11.02 inch)
  • Packaged Weight: 1.119 kg (2.47 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330083819

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN MOTORS CORPORATION 171563
DMIC DME5A
DMIC D10330AN
DMIC DRE5A
DMIC DTE5A
ENGINE DISTRIBUTORS INC P2614114
EXMAN 171563
F.B.O. CR3301
LANDINI 171563
LHA TIE24102
LIEBHERR 510651908
MP FILTRI F40P10A
SAUER SUNDSTRAND 1511031
