• Donaldson Hydraulic Filter, Cartridge - Donaldson P171561
1 1

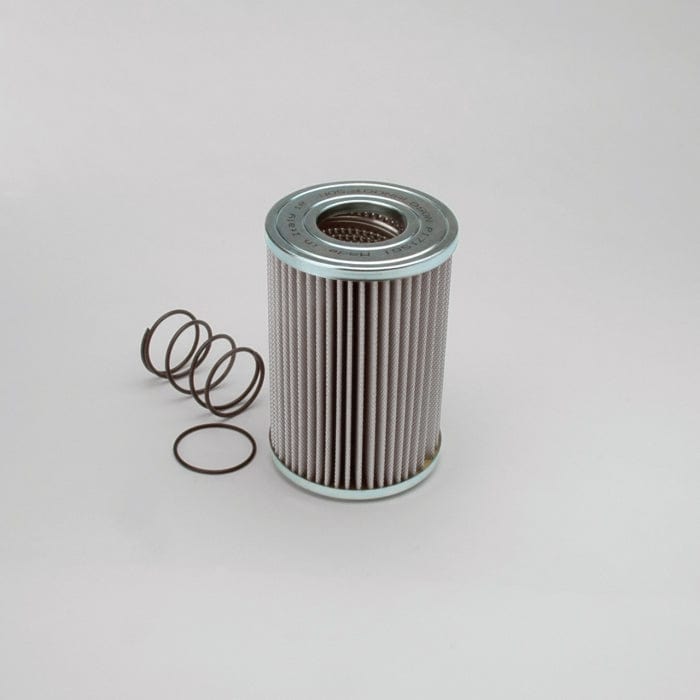

Hydraulic Filter, Cartridge - Donaldson P171561

Hydraulic Filter, Cartridge - Donaldson P171561

£42.65
£42.65
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171561

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 65 mm (2.56 inch)
  • Length: 203 mm (7.99 inch)
  • Efficiency Beta 1000: 11 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.143 m (5.70 inch)
  • Packaged Width: 0.148 m (5.90 inch)
  • Packaged Height: 0.283 m (11.30 inch)
  • Packaged Weight: 1.179 kg (2.60 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330022061

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AVN HYDRAULICS 136380
DMIC DME5C
DMIC DRE5C
DMIC DTE5C
F.B.O. CR33002
LHA TIE32101
LHA TIE3210A1
LHA TIE2410A2
MP FILTRI F40A10NA
MP FILTRI F40P10NA
OMT CR223C10R
OMT CR223F10R
