• Donaldson Hydraulic Filter, Cartridge - Donaldson P171560
1 1

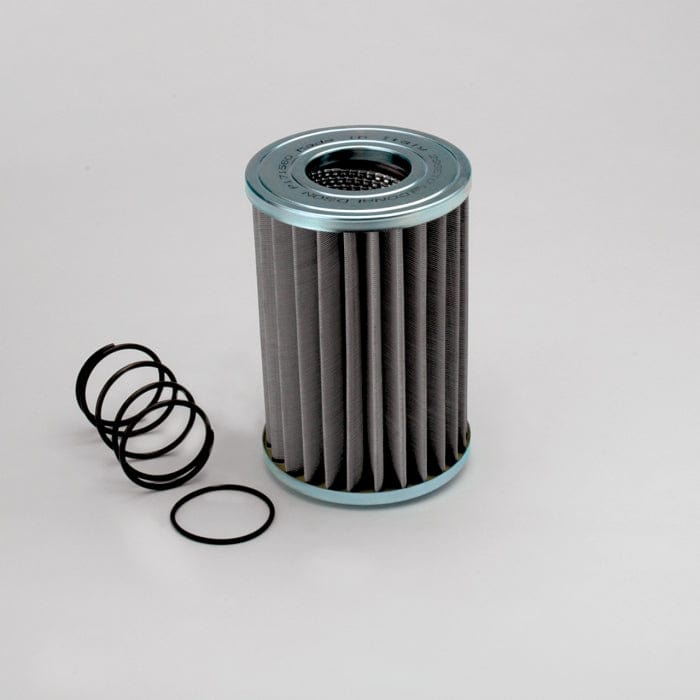

Hydraulic Filter, Cartridge - Donaldson P171560

Hydraulic Filter, Cartridge - Donaldson P171560

£32.19
£32.19
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171560

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Mesh Rating: 90 micron
  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 65.5 mm (2.58 inch)
  • Length: 203 mm (7.99 inch)
  • Efficiency Beta 2: 90 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.148 m (5.91 inch)
  • Packaged Width: 0.148 m (5.91 inch)
  • Packaged Height: 0.276 m (11.02 inch)
  • Packaged Weight: 1.462 kg (3.22 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330022054

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 84162465
DMIC D10300FN
F.B.O. CR330
MP FILTRI F40M90A
NEW HOLLAND 84162465
RAMA MOTORI JHP171560
