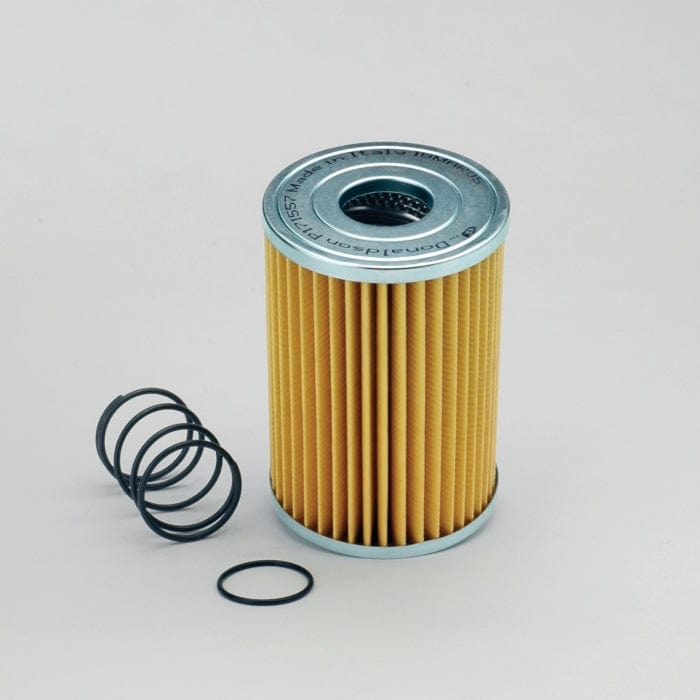

Hydraulic Filter, Cartridge - Donaldson P171557

Hydraulic Filter, Cartridge - Donaldson P171557

£20.64
£20.64
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171557

Hydraulic Filter, Cartridge
Outer Diameter 5.51 inch (140 mm)
Inner Diameter 2.05 inch (52 mm)
Length 7.99 inch (203 mm)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 36 micron
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Style Cartridge
Series FIK
Media Type Cellulose
Primary Application F.B.O. CR3251
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 52 mm (2.05 inch)
  • Length: 203 mm (7.99 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 36 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Cellulose
  • Primary Application: F.B.O. CR3251

Packaged Dimensions

  • Packaged Length: 0.148 m (5.91 inch)
  • Packaged Width: 0.148 m (5.91 inch)
  • Packaged Height: 0.286 m (11.42 inch)
  • Packaged Weight: 1.114 kg (2.46 lb)
  • Packaged Volume: 0.006 m3 (0.23 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-02
  • HTS Code: 8421298090
  • UPC Code: 742330083796

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CEDARAPIDS 450805194205
F.B.O. CR3251
GROVE 317029
IKRON HHC00024
JLG 2120195
JLG 2120194
LIEBHERR 5106639
LIEBHERR 4330123176282
LIEBHERR 510663908
LOESING 140047
MODINA RE80CD1
MP FILTRI F33P10A
MP FILTRI F33P10
NEW HOLLAND 7652
SAUER SUNDSTRAND 1511023

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
LIEBHERR LTM1035 - CRANE MOBILE LTM SERIES MERCEDES-BENZ OM 422 -
LIEBHERR LTM1040 - CRANE MOBILE LTM SERIES MERCEDES-BENZ OM 442 -
LIEBHERR LTM1300 - CRANE MOBILE LTM SERIES MERCEDES-BENZ OM 444 A -
