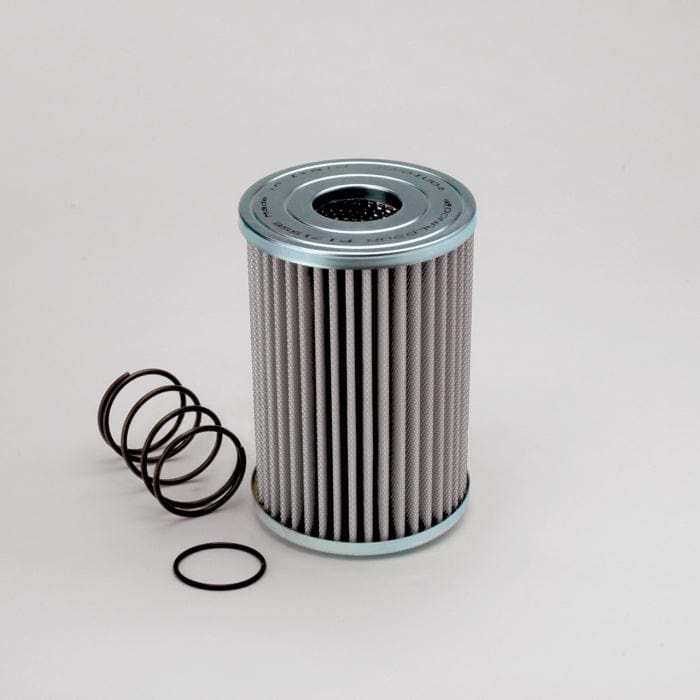

Hydraulic Filter, Cartridge - Donaldson P171556

Hydraulic Filter, Cartridge - Donaldson P171556

Regular price £44.27
Regular price Sale price £44.27
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171556

Hydraulic Filter, Cartridge
View full details

Collapsible content

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 52 mm (2.05 inch)
  • Length: 202.6 mm (7.98 inch)
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.143 m (5.70 inch)
  • Packaged Height: 0.278 m (11.10 inch)
  • Packaged Weight: 1.179 kg (2.60 lb)
  • Packaged Volume: 0.006 m3 (0.21 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330022030

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
F.B.O. CR32503
LOESING 140120
MODINA RE80FV1
MP FILTRI F33A25
