• Donaldson Hydraulic Filter, Cartridge - Donaldson P171555
1 1

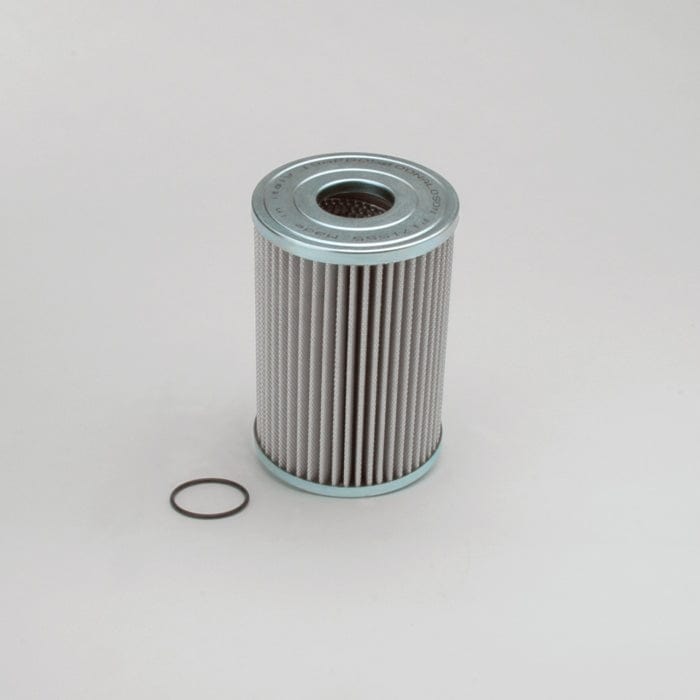

Hydraulic Filter, Cartridge - Donaldson P171555

Hydraulic Filter, Cartridge - Donaldson P171555

£43.19
£43.19
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171555

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 140 mm (5.51 inch)
  • Inner Diameter: 63.7 mm (2.51 inch)
  • Length: 202.6 mm (7.98 inch)
  • Efficiency Beta 1000: 11 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.145 m (5.80 inch)
  • Packaged Height: 0.278 m (11.10 inch)
  • Packaged Weight: 1.177 kg (2.60 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330022023

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
F.B.O. CR32502
LIEBHERR 510670108
LIEBHERR 510670177
LOESING 140082
MODINA RE80FD1
MP FILTRI F33A10
NEW HOLLAND 6166
SAUER SUNDSTRAND 1511028
VMC HF171555

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
LIEBHERR LTC1055 - CRANE MOBILE LTC SERIES LIEBHERR D846TIA5 -
LIEBHERR LTM1030/1 - CRANE MOBILE LTM SERIES - LTM1030/1 -
LIEBHERR LTM1030/2 - CRANE MOBILE LTM SERIES MERCEDES-BENZ OM 906 LA -
LIEBHERR LTM1090/2 - CRANE MOBILE LTM SERIES LIEBHERR D9406TI-E -
LIEBHERR LTM1100-4.1 - CRANE MOBILE LTM SERIES LIEBHERR D846A7 -
LIEBHERR LTM1120/1 CARRIER - CRANE MOBILE LTM SERIES LIEBHERR D9408TI -
LIEBHERR LTM1160 - CRANE MOBILE LTM SERIES - LTM1160 -
LIEBHERR LTM1160/2 - CRANE MOBILE LTM SERIES LIEBHERR D9408TI-E -
LIEBHERR LTM1200 - CRANE MOBILE LTM SERIES MERCEDES-BENZ OM 444 A -
