• Donaldson Hydraulic Filter, Cartridge - Donaldson P171543
1 1

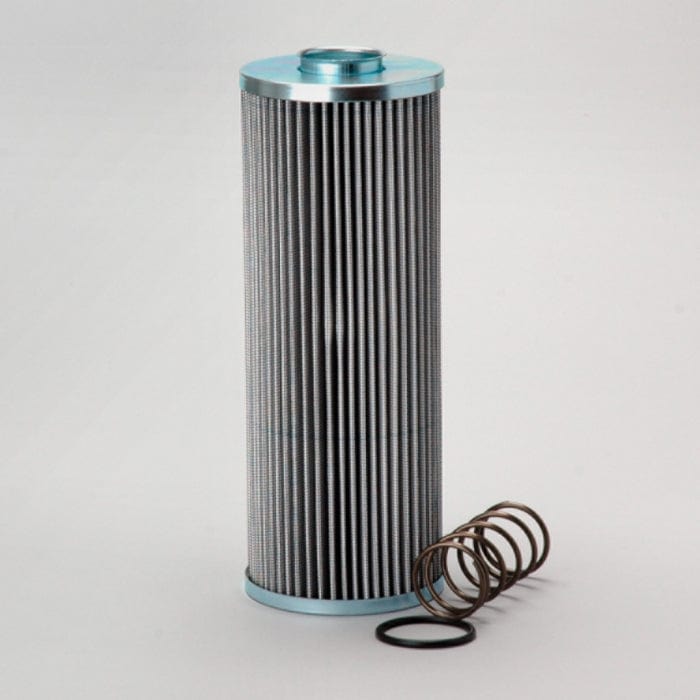

Hydraulic Filter, Cartridge - Donaldson P171543

Hydraulic Filter, Cartridge - Donaldson P171543

£24.63
£24.63
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171543

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 95 mm (3.74 inch)
  • Inner Diameter: 41 mm (1.61 inch)
  • Length: 250 mm (9.84 inch)
  • Efficiency Beta 200: 9 micron
  • Efficiency Beta 1000: 11 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Media Type: Synteq XP

Packaged Dimensions

  • Packaged Length: 0.103 m (4.10 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.280 m (11.20 inch)
  • Packaged Weight: 0.703 kg (1.55 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: Poland
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330118900

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
F.B.O. CR20102
LAVERDA 4301938500
PALFINGER EA1761
PALFINGER M63050046
TERBERG T27103176
