• Donaldson Hydraulic Filter, Cartridge - Donaldson P171541
1 1

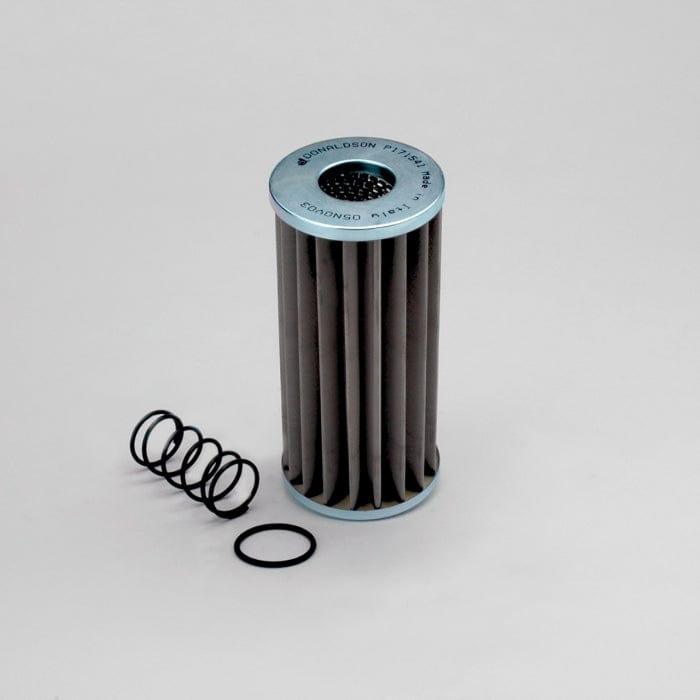

Hydraulic Filter, Cartridge - Donaldson P171541

Hydraulic Filter, Cartridge - Donaldson P171541

£28.25
£28.25
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171541

Hydraulic Filter, Cartridge
Outer Diameter 3.74 inch (95 mm)
Inner Diameter 1.61 inch (41 mm)
Length 7.95 inch (202 mm)
Overall Length 8.23 inch (209 mm)
Efficiency Beta 2 60 micron
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Style Cartridge
Series FIK
Media Type Wire Mesh
View full details

Specifications

Attributes

  • Mesh Rating: 60 micron
  • Outer Diameter: 95 mm (3.74 inch)
  • Inner Diameter: 41 mm (1.61 inch)
  • Length: 202 mm (7.95 inch)
  • Overall Length: 209 mm (8.23 inch)
  • Efficiency Beta 2: 60 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.246 m (9.84 inch)
  • Packaged Weight: 0.532 kg (1.17 lb)
  • Packaged Volume: 0.003 m3 (0.09 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330022009

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AVN HYDRAULICS 135800
BENATI 1813116
CORMACH 8140025
F.B.O. CR1806
FARID INDUSTRIE 333311
FISPA LI3387
ITALMEC 377203
LHA TIE2060
LOESING 140042
MERLO 009401AA
MODINA RE50MS1
MP FILTRI MF1801M60NBP0101002462
MP FILTRI F18M60A
MP FILTRI MF1801AM60NB
MP FILTRI MF1801M60NB
OMT CR171R60R
OMT CR200C
PALFINGER EA293
SAUER SUNDSTRAND 607292
VMC HF171541

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
TEREX SF40 - FORKLIFT SF SERIES - SF40 -
TEREX SF50 - FORKLIFT SF SERIES - SF50 -
