• Donaldson Hydraulic Filter, Cartridge - Donaldson P171538
1 1

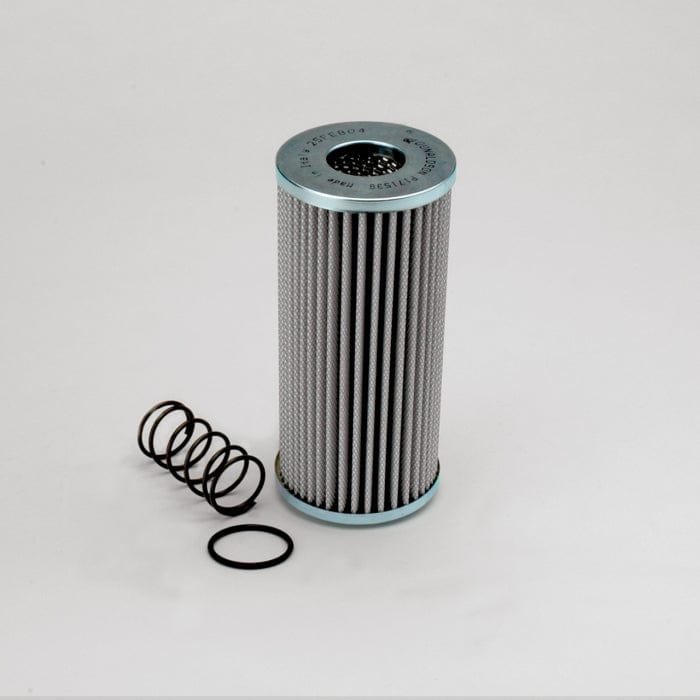

Hydraulic Filter, Cartridge - Donaldson P171538

Hydraulic Filter, Cartridge - Donaldson P171538

£38.33
£38.33
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171538

Hydraulic Filter, Cartridge
Outer Diameter 3.74 inch (95 mm)
Inner Diameter 1.61 inch (41 mm)
Length 7.95 inch (202 mm)
Efficiency Beta 1000 23 micron
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Style Cartridge
Series FIK
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 95 mm (3.74 inch)
  • Inner Diameter: 41 mm (1.61 inch)
  • Length: 202 mm (7.95 inch)
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.110 m (4.40 inch)
  • Packaged Width: 0.108 m (4.30 inch)
  • Packaged Height: 0.258 m (10.30 inch)
  • Packaged Weight: 0.680 kg (1.50 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330021996

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
F.B.O. CR18003
LHA TIE2025
MANITOU 275437M1
MODINA RE50FV1
MP FILTRI MF1801A25HBP0101002462
MP FILTRI MF1801A25HBP01
MP FILTRI MF1801A25HB
MP FILTRI MF1801A25NBP01
MP FILTRI MF1801A25NB
OMT CR171F25R
OMT CR200H
OMT CR200B
SOFRANCE NR40C025
