• Donaldson Hydraulic Filter, Cartridge - Donaldson P171537
1 1

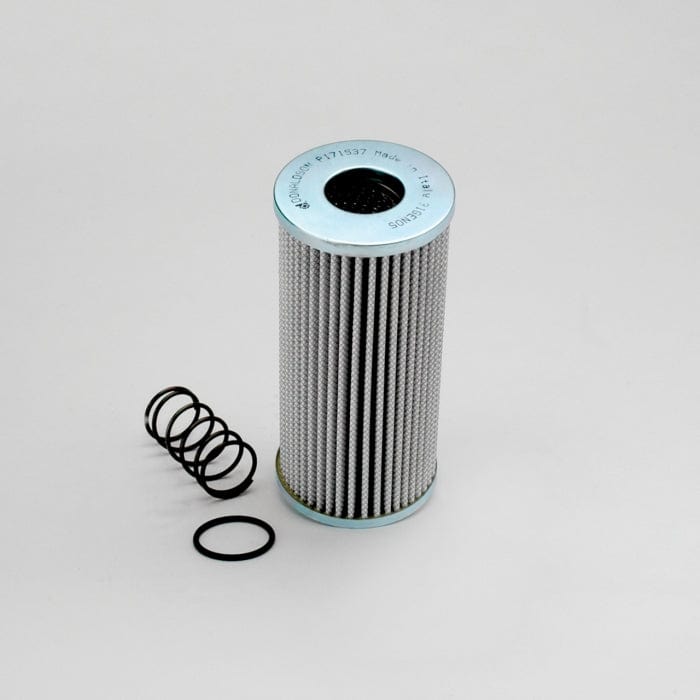

Hydraulic Filter, Cartridge - Donaldson P171537

Hydraulic Filter, Cartridge - Donaldson P171537

£34.49
£34.49
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171537

Hydraulic Filter, Cartridge
Outer Diameter 3.74 inch (95 mm)
Inner Diameter 1.61 inch (41 mm)
Length 7.95 inch (202 mm)
Efficiency Beta 1000 11 micron
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Style Cartridge
Series FIK
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 95 mm (3.74 inch)
  • Inner Diameter: 41 mm (1.61 inch)
  • Length: 202 mm (7.95 inch)
  • Efficiency Beta 1000: 11 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.100 m (4.00 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.248 m (9.90 inch)
  • Packaged Weight: 0.635 kg (1.40 lb)
  • Packaged Volume: 0.003 m3 (0.09 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330021989

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AVN HYDRAULICS 135550
DMIC DME4C
DMIC DRE4C
DMIC DTE4C
DUPLOMATIC FRTE114P10S10
F.B.O. CR18002
FPC FP134174
JCB 32925100
LHA TIE2010A
LHA TIE2010
MODINA RE50FD1
MP FILTRI MF1801A10NBP01
MP FILTRI MF1801A10HBP0101002462
MP FILTRI MF1801A10HBP01
MP FILTRI MF1801A10HB
MP FILTRI MF1801A10NB
OMT CR171F10R
OMT CR200A
OMT CR200G
SOFRANCE NR40C010
TEREX 10213406
