• Donaldson Hydraulic Filter, Cartridge - Donaldson P171536
1 1

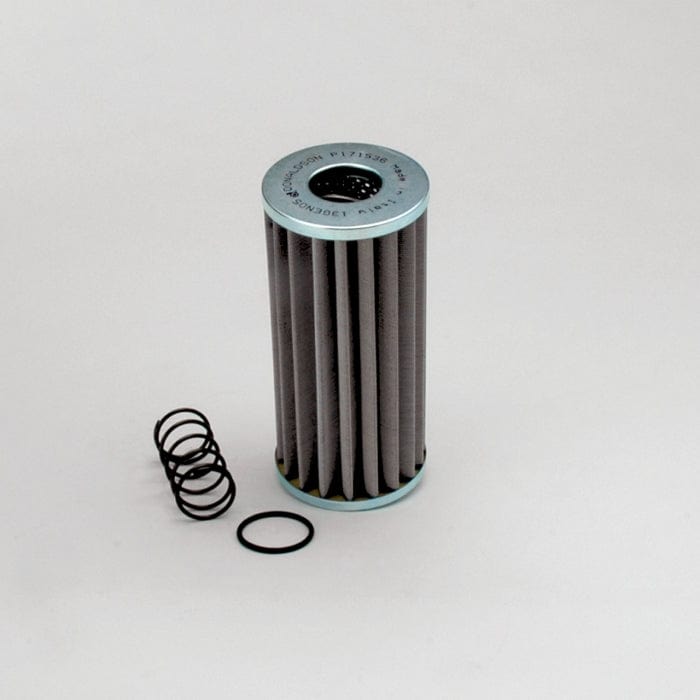

Hydraulic Filter, Cartridge - Donaldson P171536

Hydraulic Filter, Cartridge - Donaldson P171536

£23.69
£23.69
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171536

Hydraulic Filter, Cartridge
Outer Diameter 3.74 inch (95 mm)
Inner Diameter 1.61 inch (41 mm)
Length 7.95 inch (202 mm)
Efficiency Beta 2 90 micron
Bypass Valve Yes
Bypass Valve Setting LR 22 psi (1.5 bar)
Collapse Burst 145 psi (10 bar)
Style Cartridge
Series FIK
Media Type Wire Mesh
View full details

Specifications

Attributes

  • Mesh Rating: 90 micron
  • Outer Diameter: 95 mm (3.74 inch)
  • Inner Diameter: 41 mm (1.61 inch)
  • Length: 202 mm (7.95 inch)
  • Efficiency Beta 2: 90 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.246 m (9.84 inch)
  • Packaged Weight: 0.776 kg (1.71 lb)
  • Packaged Volume: 0.003 m3 (0.09 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330021972

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
EFFER 8915900
F.B.O. CR180
FISPA LI2537
LOESING 140040
MODINA RE50MCV1
MP FILTRI MF1801M90NBP01
MP FILTRI MF1801M90HBP01
MP FILTRI MF1801M90NBP0101002462
MP FILTRI MF1801M90HB
MP FILTRI MF1801M90NB
MP FILTRI F18M90A
OMT CR171R125R
OMT CR200E
PALFINGER EA547
TECNO COMP TR1228
